Connector Identification

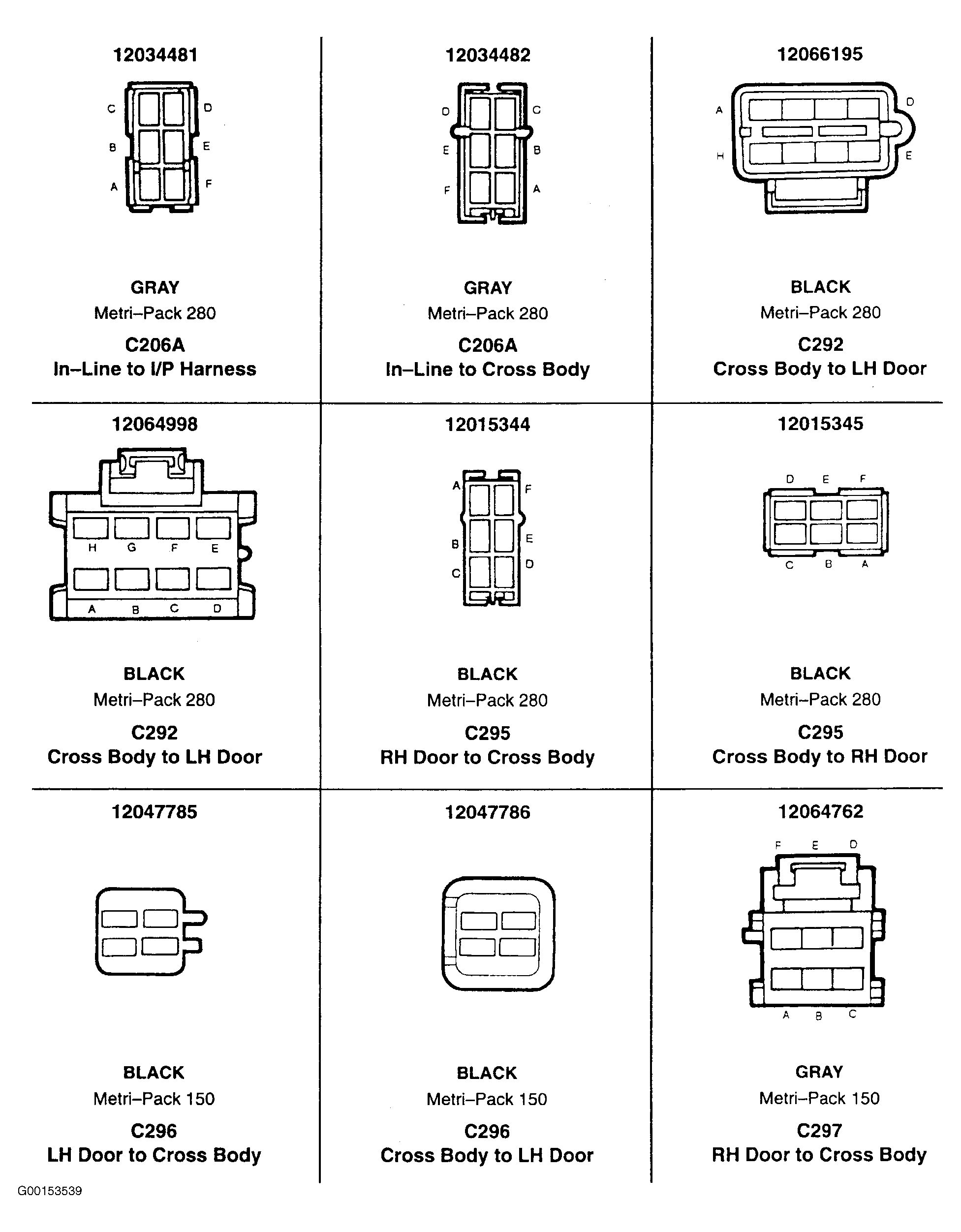

Fig 1: Identifying Power Mirror Connectors (C206A, C292 & C295-C297)

Courtesy of GENERAL MOTORS CORP.

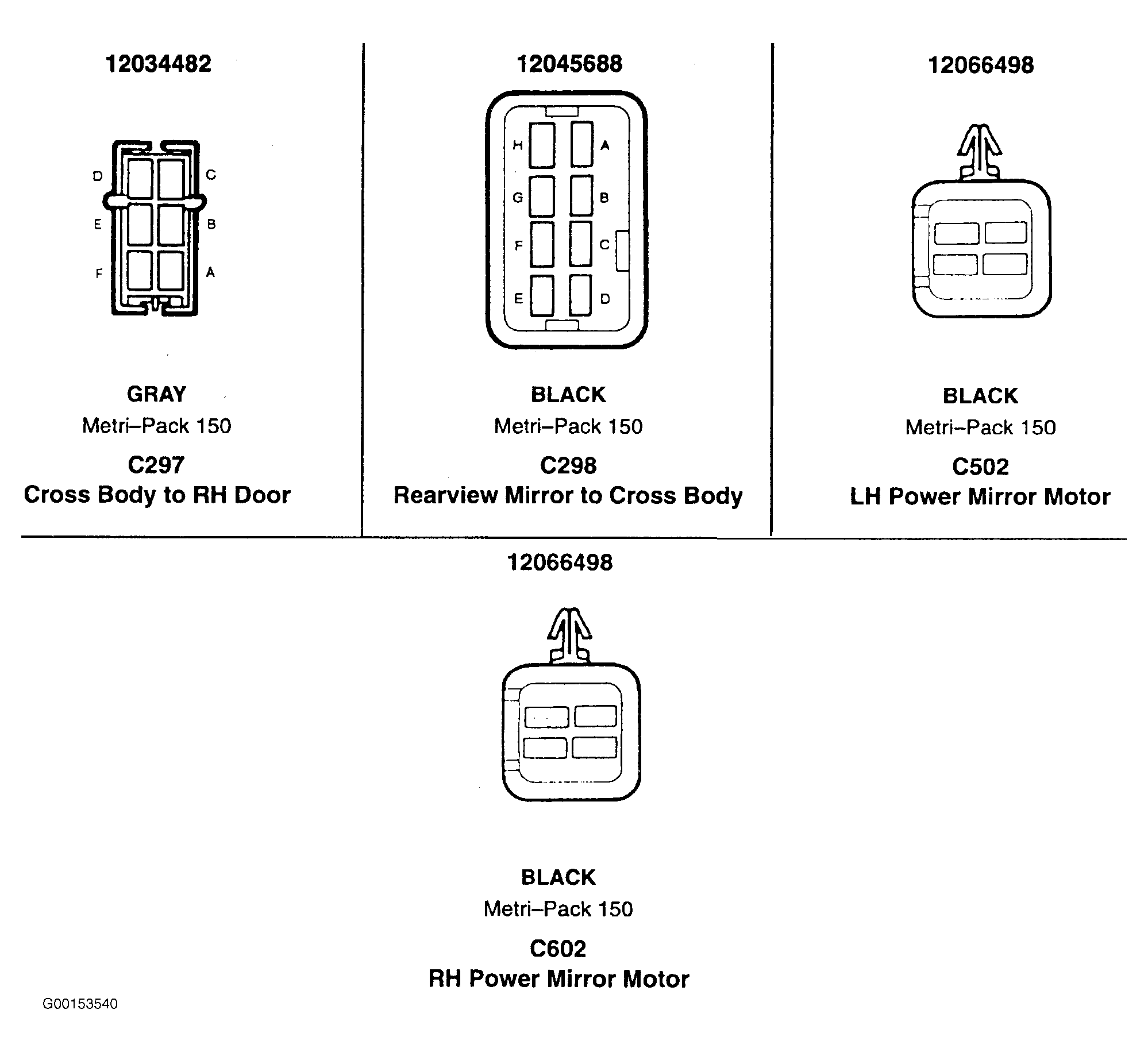

Fig 2: Identifying Power Mirror Connectors (C297, C298, C502 & C602)

Courtesy of GENERAL MOTORS CORP.
