Power Window Switch: Removal

1. Disconnect negative battery cable.
2. Remove door trim panel. See TRIM PANEL .
3. Remove inner handle housing.
4. Disconnect wiring connector (138, 170 or 177). See Fig 1 or Fig 2 .
5. Press in both spring clips and remove the switch (168, 169 or 176). See Fig 1 or Fig 2 .
6. Remove switch from the escutcheon.

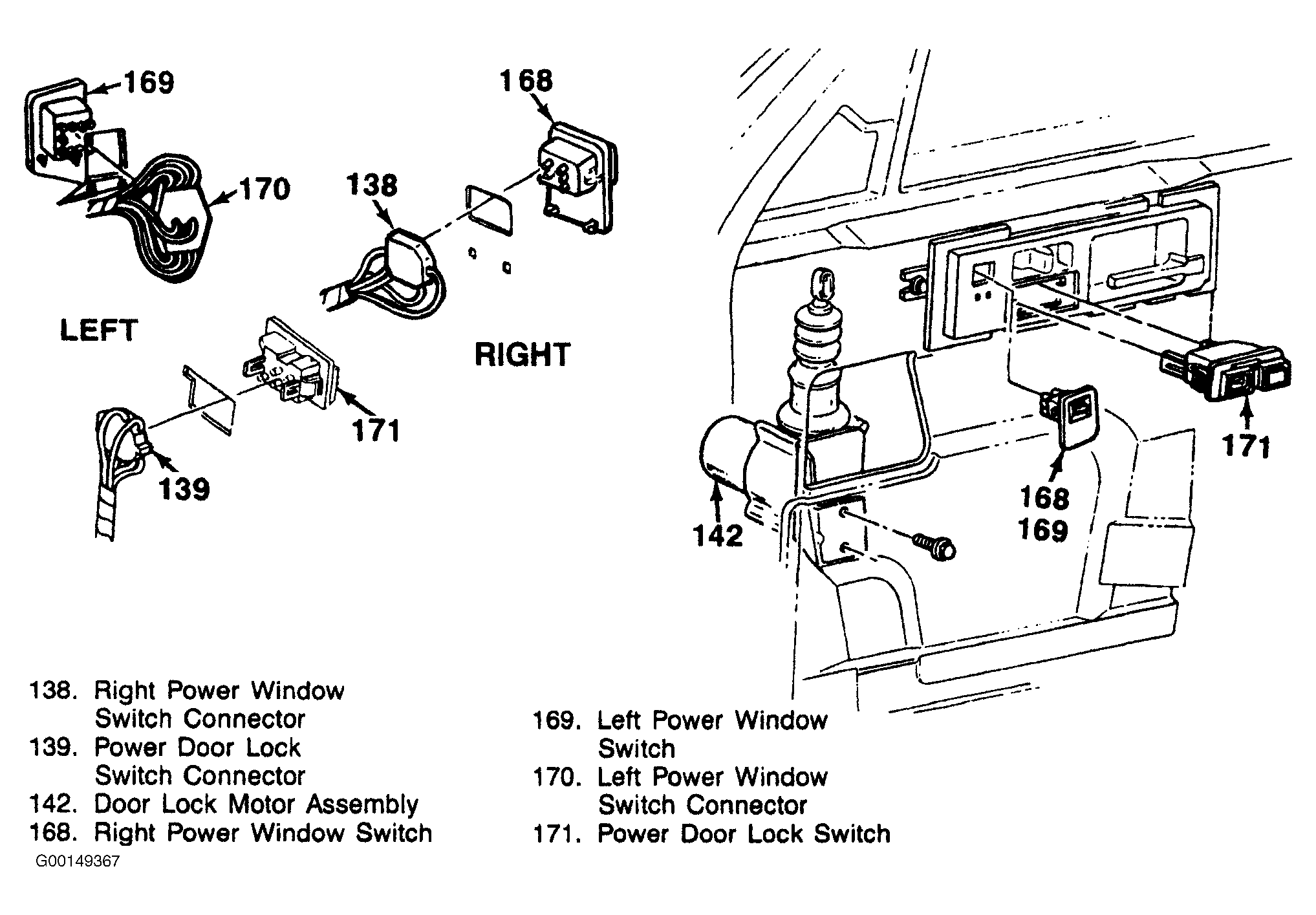

Fig 1: Removing Front Door Power Window Switch

Courtesy of GENERAL MOTORS CORP.

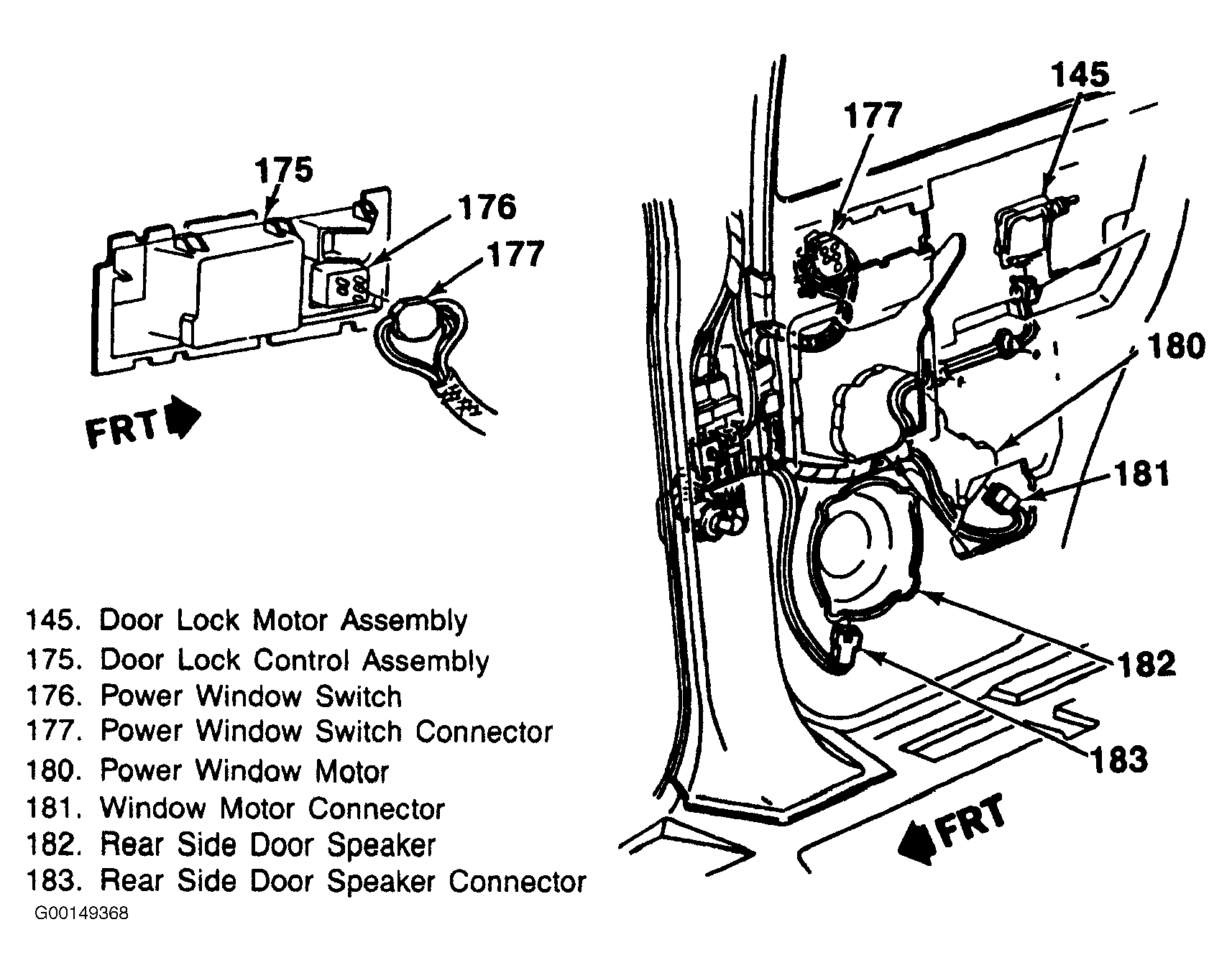

Fig 2: Removing Rear Door Power Window Switch

Courtesy of GENERAL MOTORS CORP.
