Water Deflector: Removal

  1. Remove door trim panel. See TRIM PANEL .
  2. Remove plastic retainers (70). See Figure.
  3. Remove armrest bracket (67).
  4. Pull the waterproof sealing tape (52) from the deflector. Break the bond between the sealer and the door with a flat-bladed tool. Remove water deflector (53). See Fig 1.

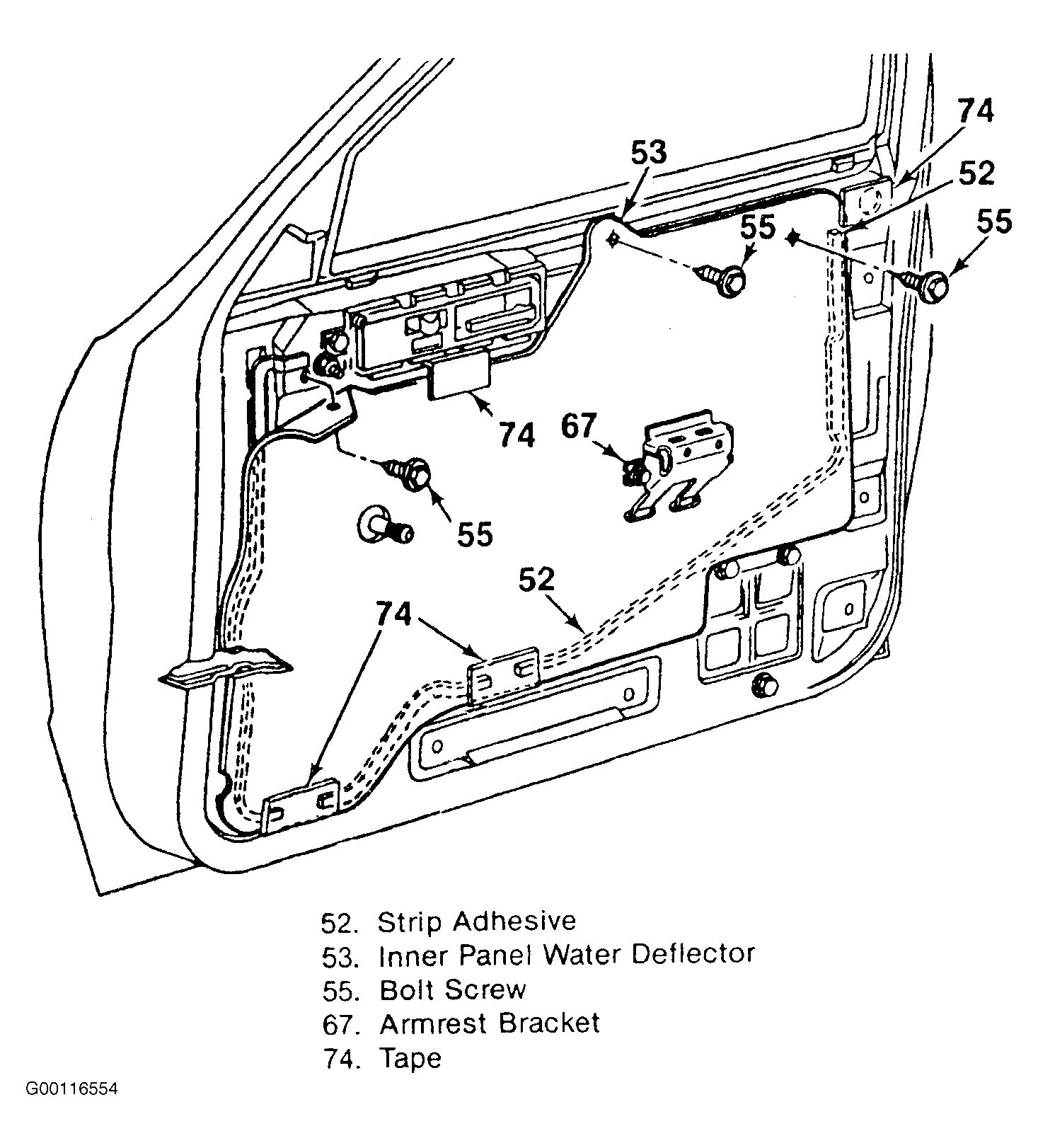

Fig 1: Removing Water Deflector
G00116554Courtesy of GENERAL MOTORS CORP.
