Test D: Left Rear Power Window Does Not Operate From Either Switch/Left Front Power Window Operates

For test procedure, refer to illustration. See Fig 1.

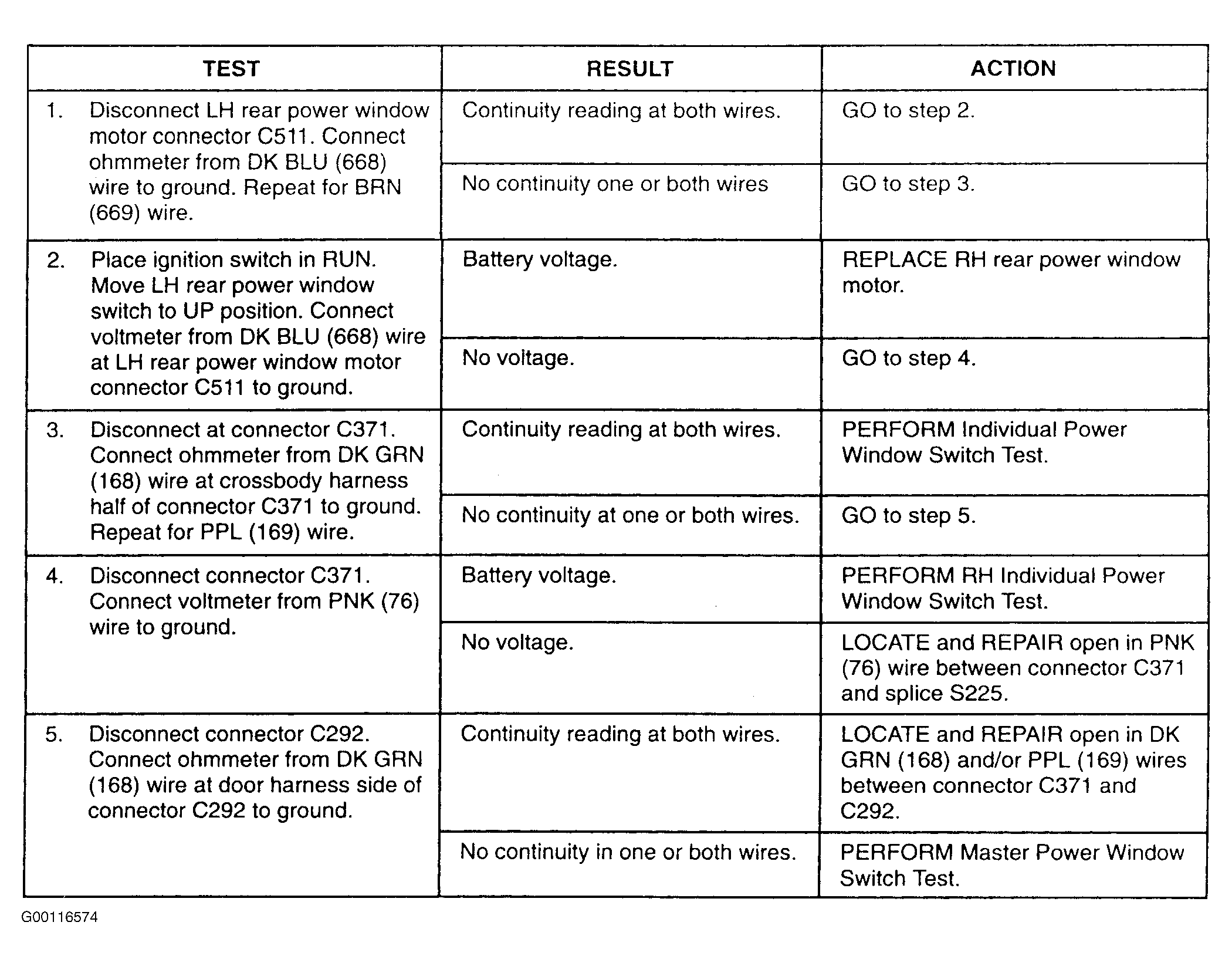

Fig 1: Test D - Left Rear Power Window Does Not Operate From Either Switch/Left Front Power Window Operates

Courtesy of GENERAL MOTORS CORP.
