Wiring Diagrams

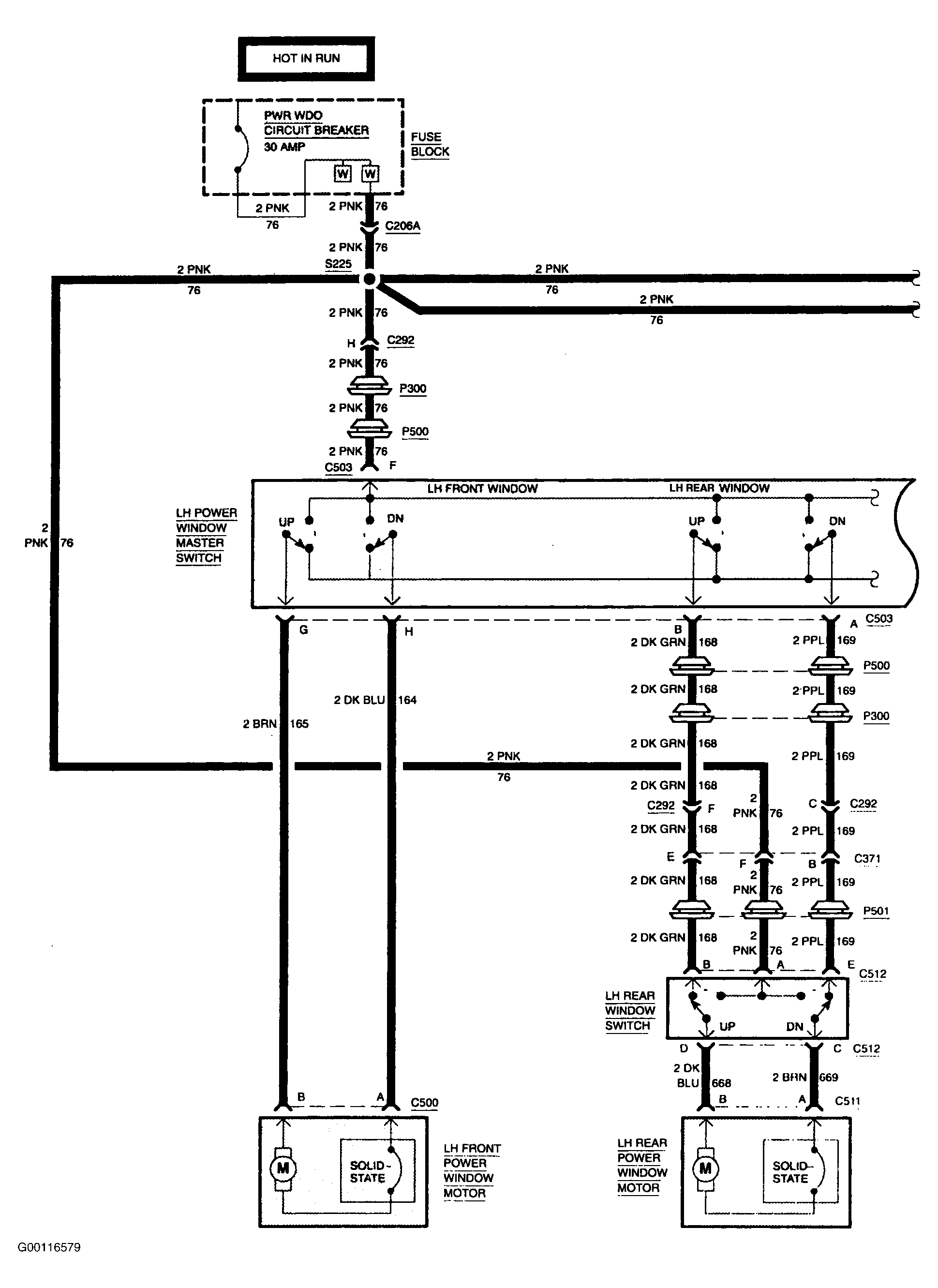

Fig 1: Power Window System Wiring Diagram (1993 Bravada - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

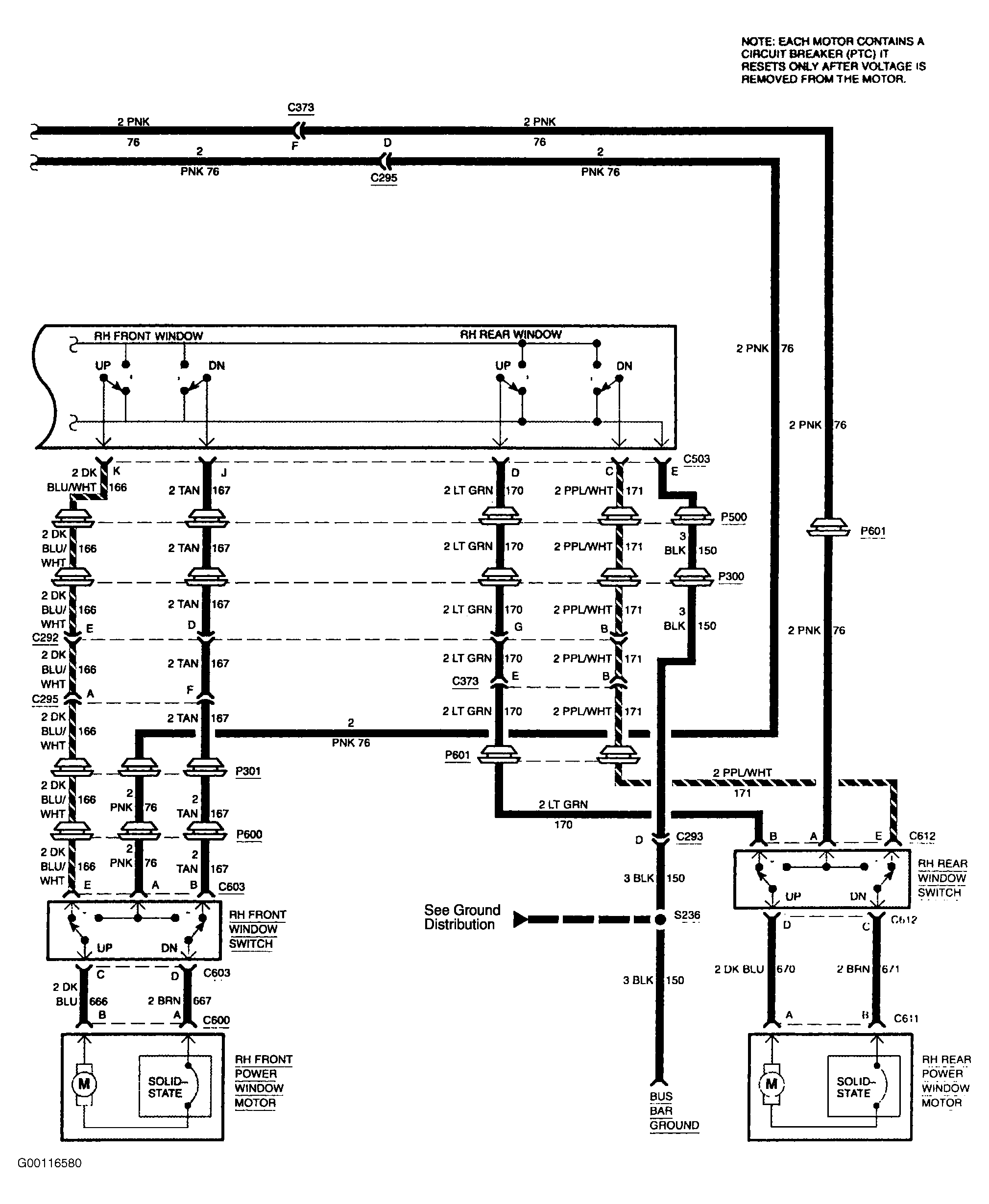

Fig 2: Power Window System Wiring Diagram (1993 Bravada - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
