Instrument Panel - Analog: Testing: Notes

NOTE: When testing suspect gauges/indicators, refer to appropriate illustrations to identify instrument cluster terminals. See Fig 1 .

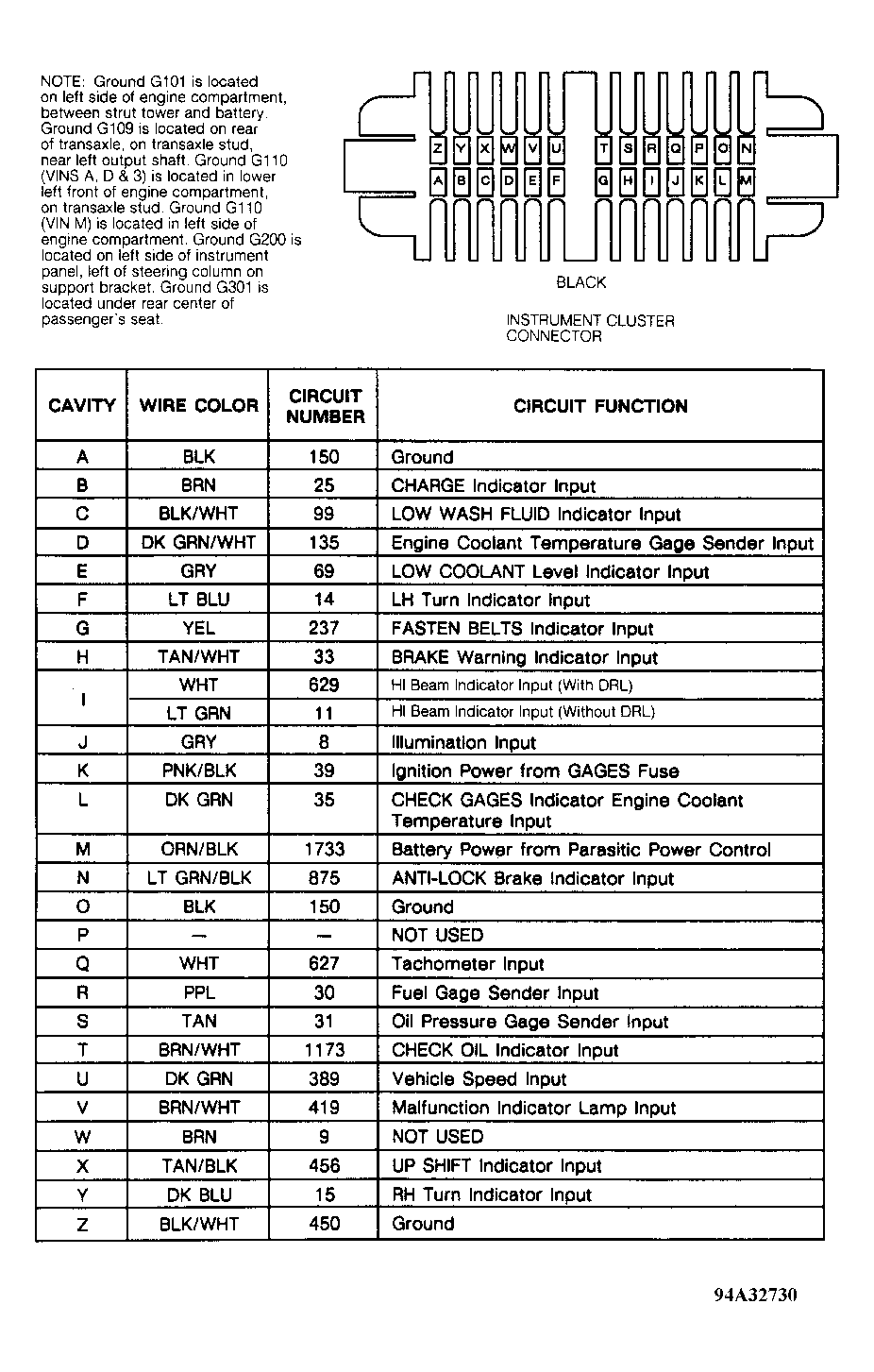

Fig 1: Testing Instrument Cluster Connector Terminals

Courtesy of GENERAL MOTORS CORP.
