Connector Identification

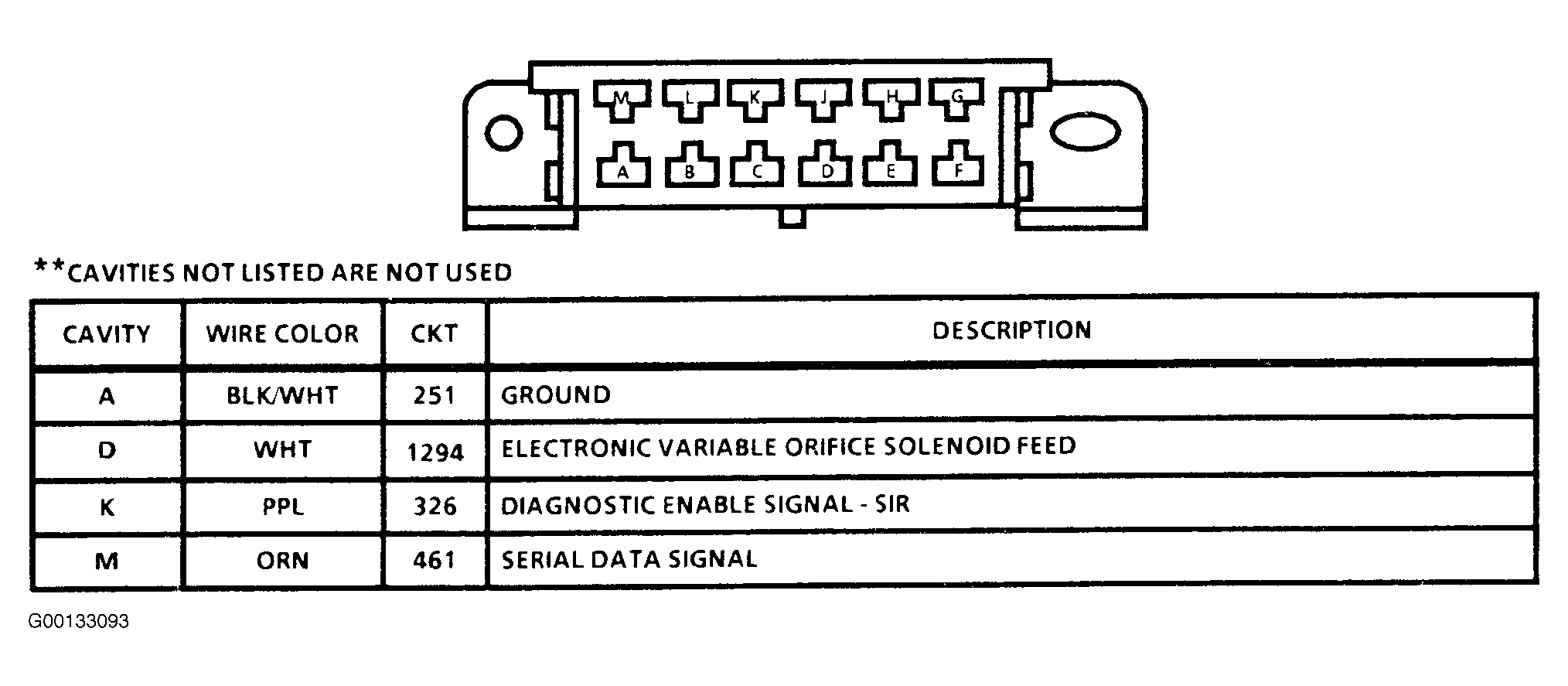

Fig 1: Data Link Connector Pin Identification
G00133093Courtesy of GENERAL MOTORS CORP.
