Engine Controls - System/Component Tests - 4.0L
›
Component Locations
Component Locations

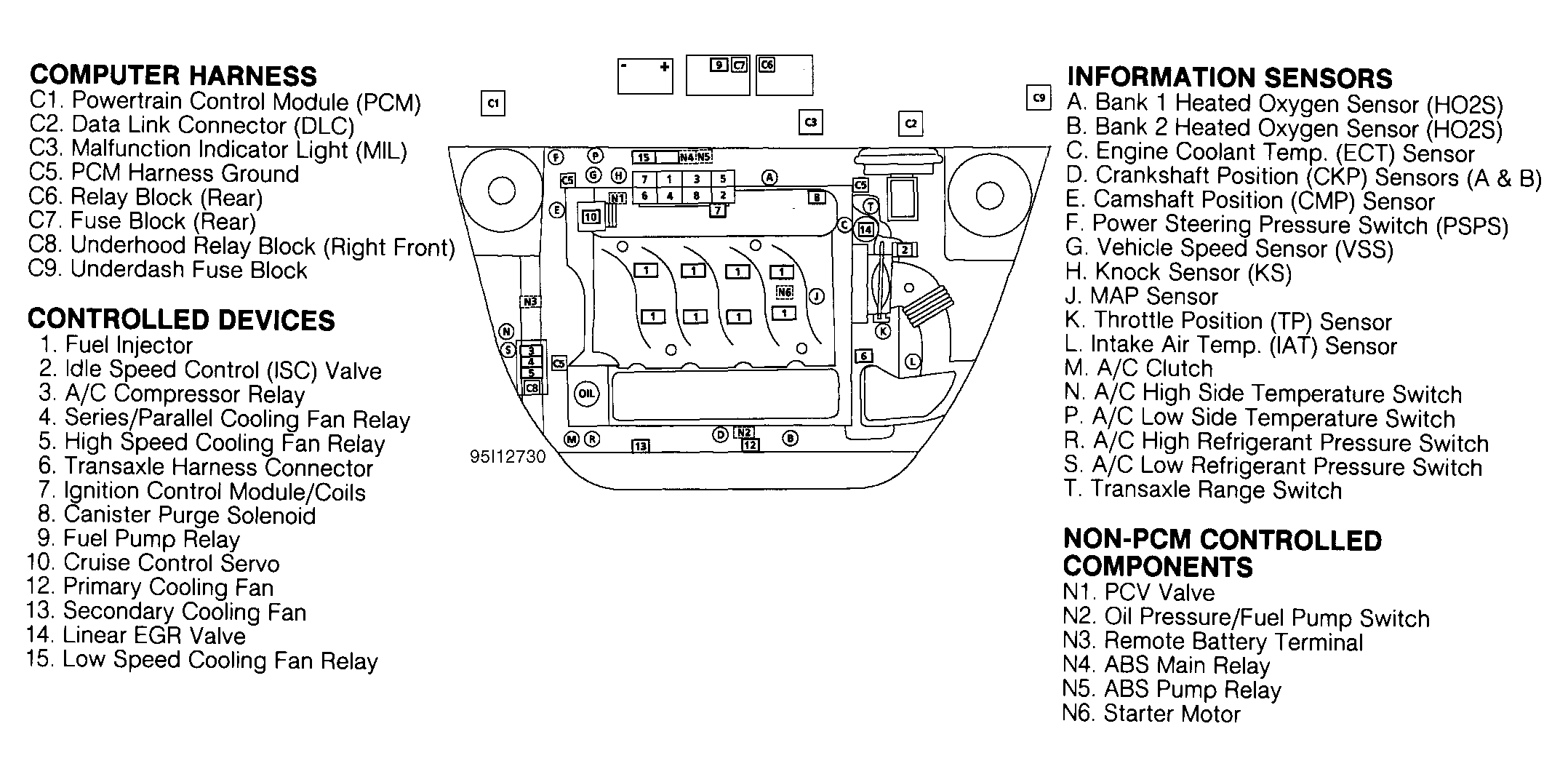

Fig 1: Component Locations (Aurora)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
