Diagnostic Aids

Check for electromagnetic interference on VSS circuits due to close proximity to high voltage sources.

Fig 1: Code 24 Schematic, Vehicle Speed Sensor (4.0L)

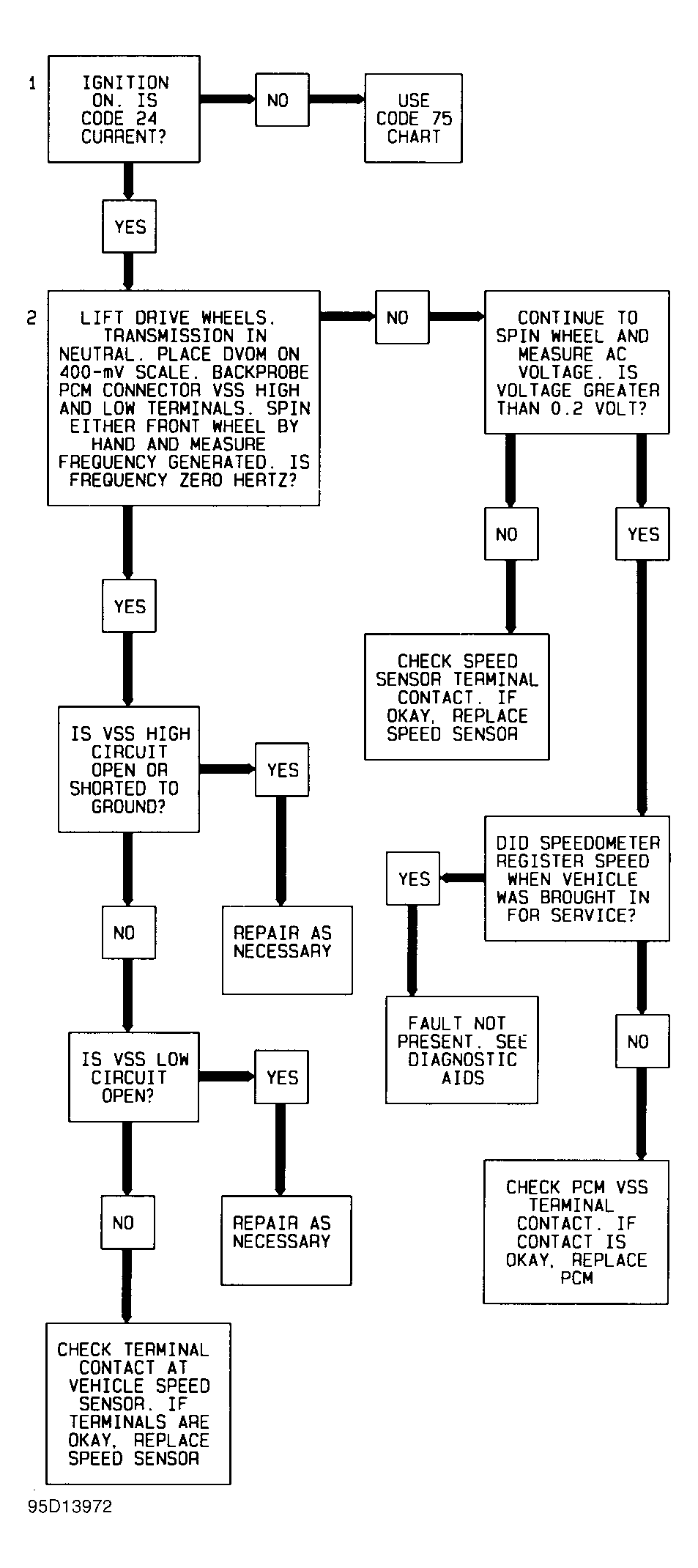

Fig 2: Code 24 Diagnostic Flow Chart, Vehicle Speed Sensor (4.0L)
