Diagnostic Aids

Code may set due to false start condition in which engine RPM exceeded 568 RPM but engine did not start.

Fig 1: Code 53 Schematic (4.0L) Intermittent 4X Signal From Ignition Module

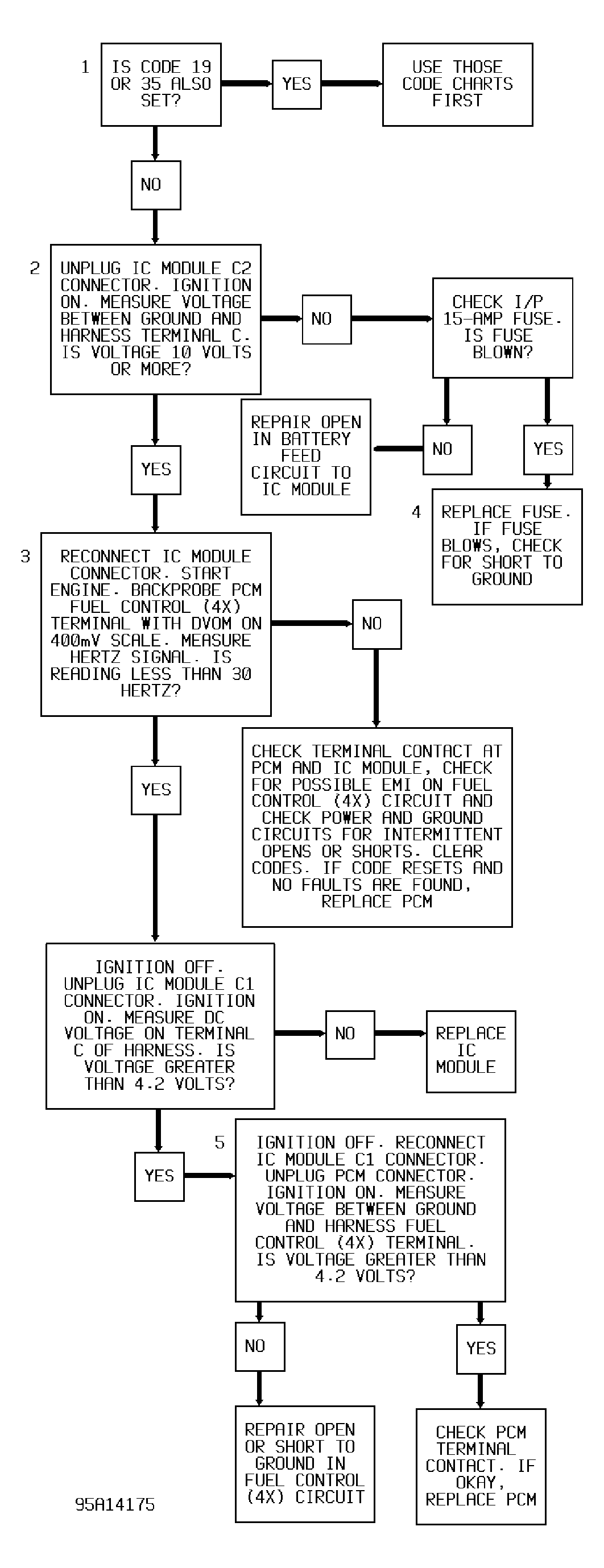

Fig 2: Code 53 Diagnostic Flow Chart (4.0L) Intermittent 4X Signal From Ignition Module
