Component Locations

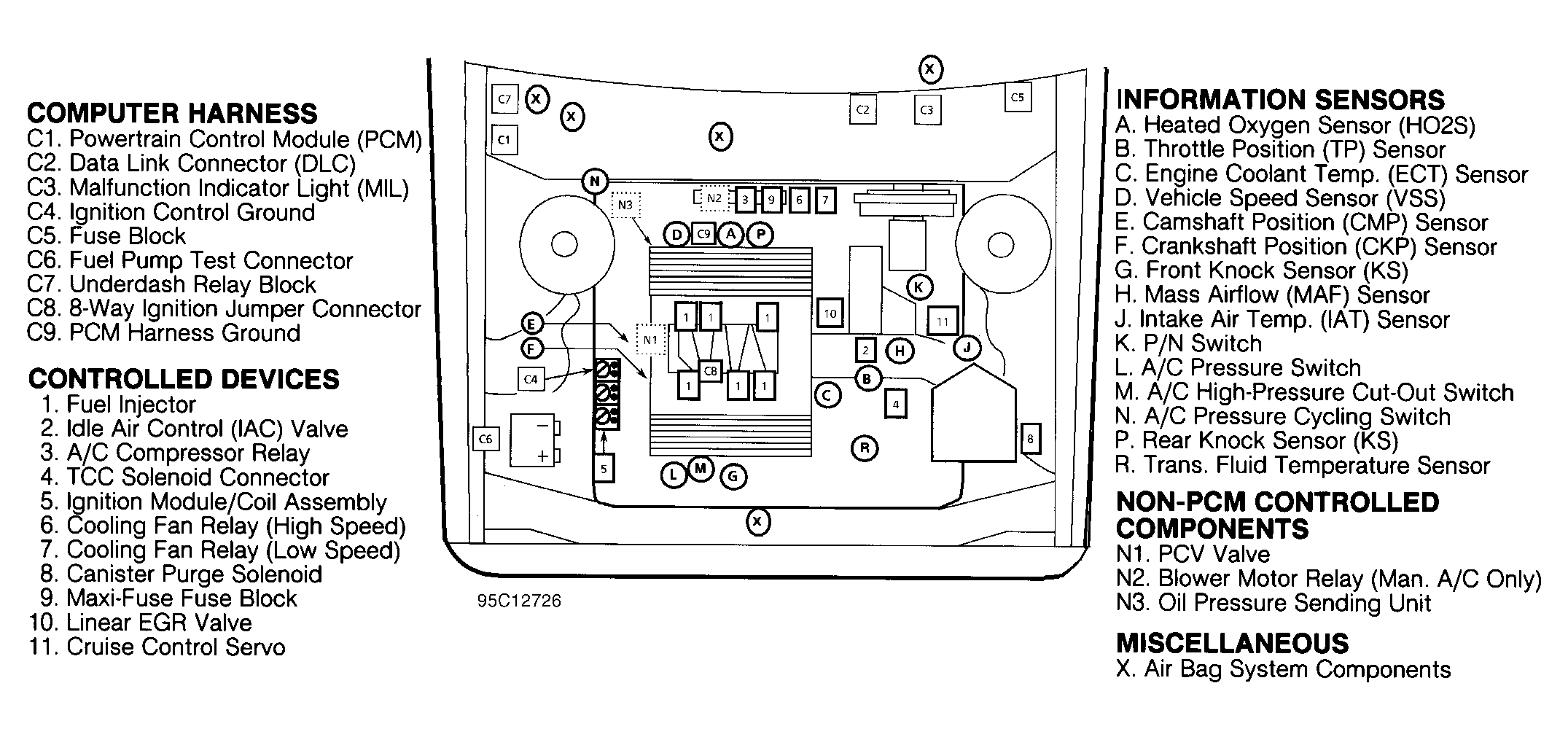

Fig 1: Component Locations (3.8L VIN K)
G95C12726Courtesy of GENERAL MOTORS CORP.
Fig 2: Component Locations (3.8L VIN 1)
G95B12725Courtesy of GENERAL MOTORS CORP.
