Engine Controls - Tests W/Codes
›
ECM/Pcm Code Charts
›
Code P1530, A/C Head Pressure Switch
›
Test Description
Test Description

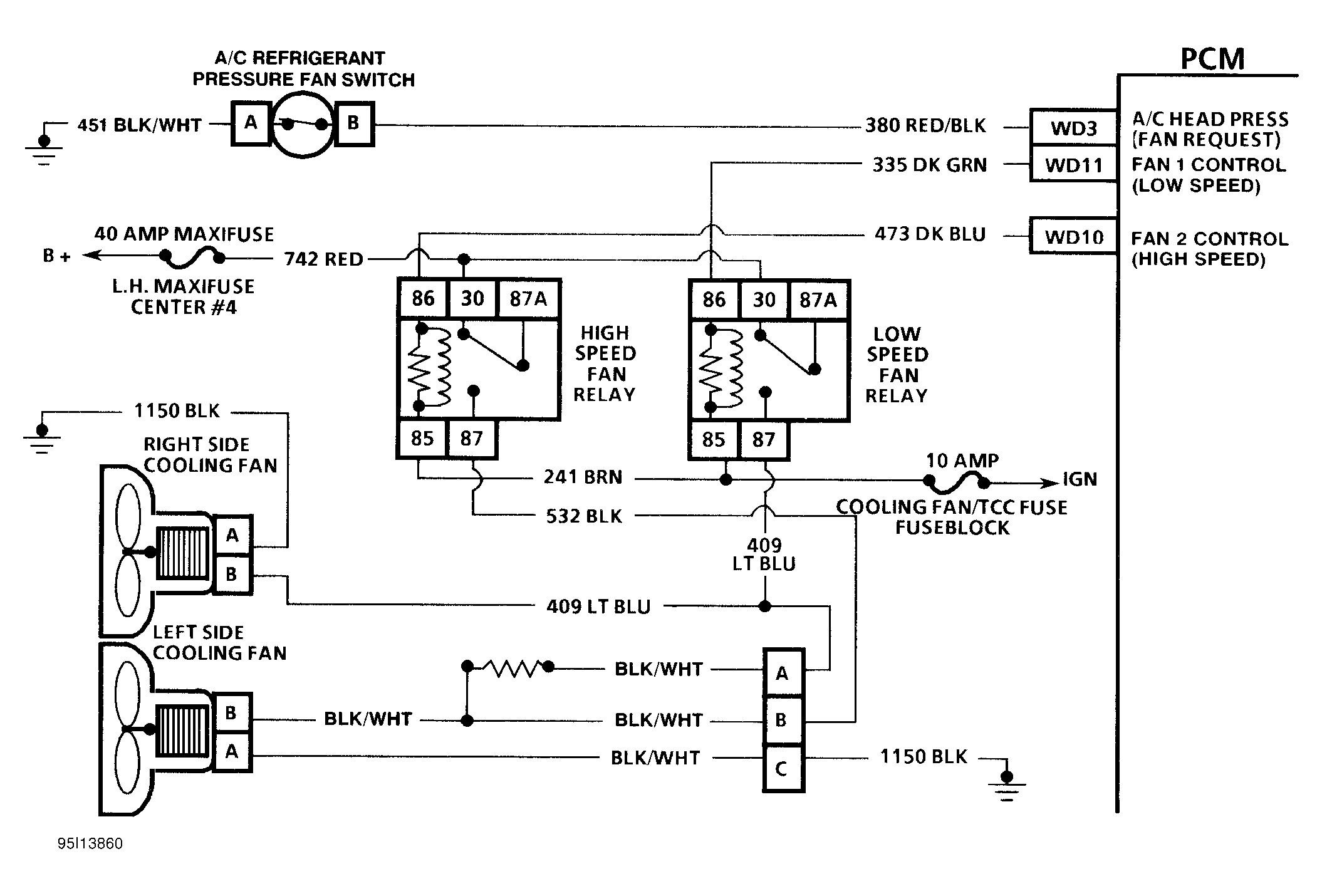

Fig 1: Code P1530 Schematic (3.8L) A/C Head Pressure Switch
Fig 2: Code P1530 Diagnostic Flow Chart (3.8L) A/C Head Pressure Switch
