Code P1567, Cruise Switches Circuit
›
Test Description
Test Description

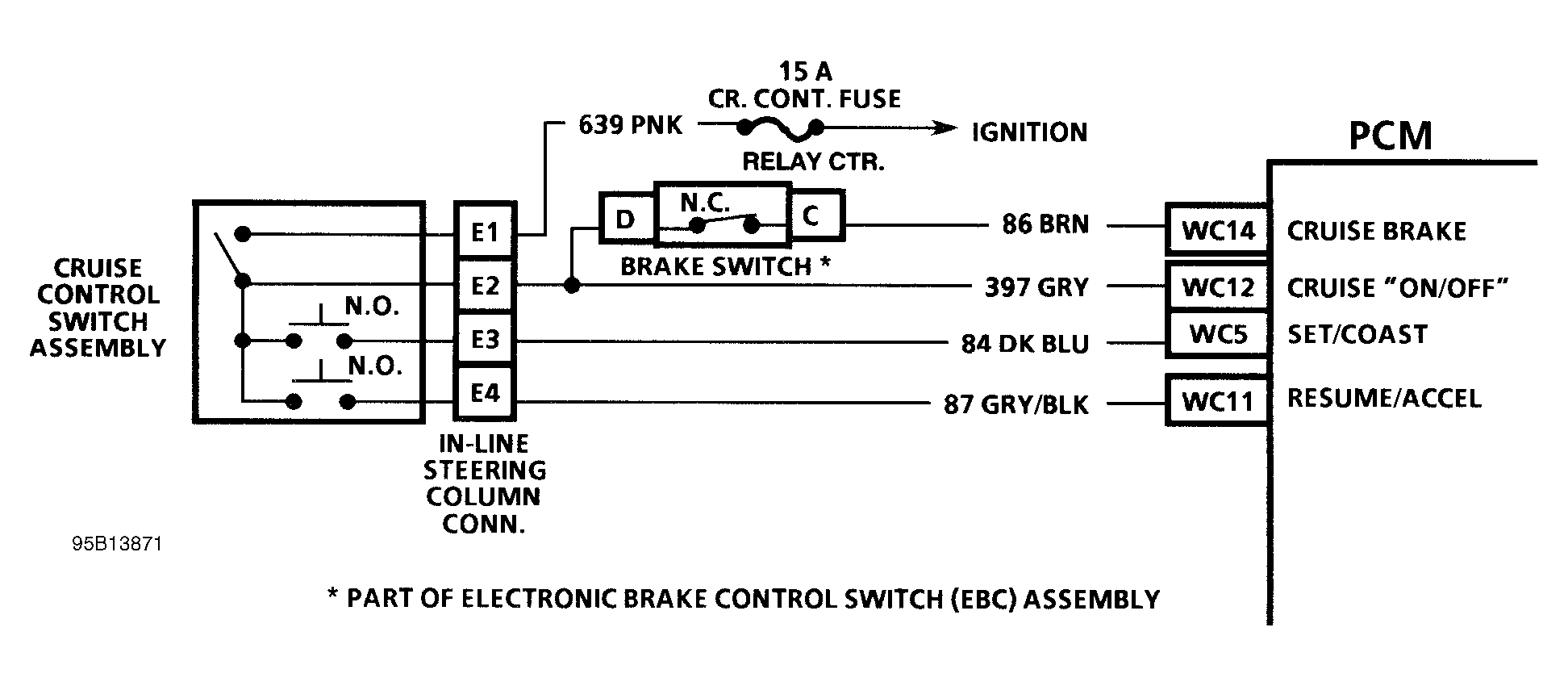

Fig 1: Code P1567 Schematic (3.8L) Cruise Switches Circuit

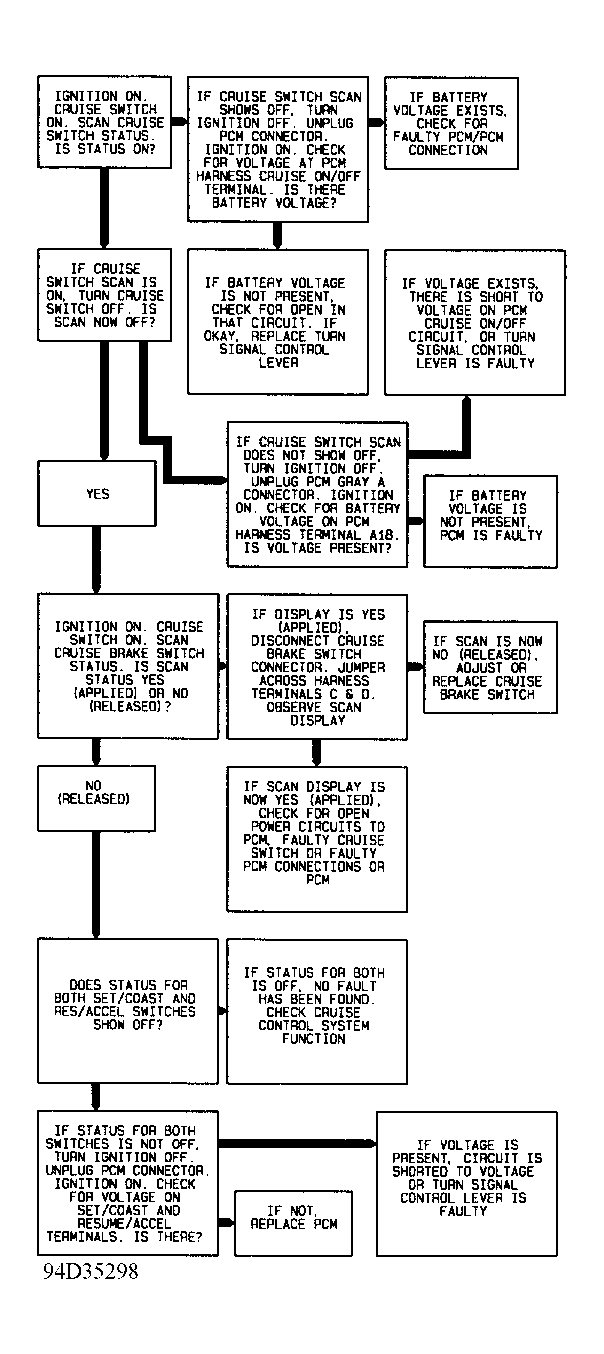

Fig 2: Code P1567 Diagnostic Flow Chart (3.8L) Cruise Switches Circuit
