Pressure Modulator Valve: Installation

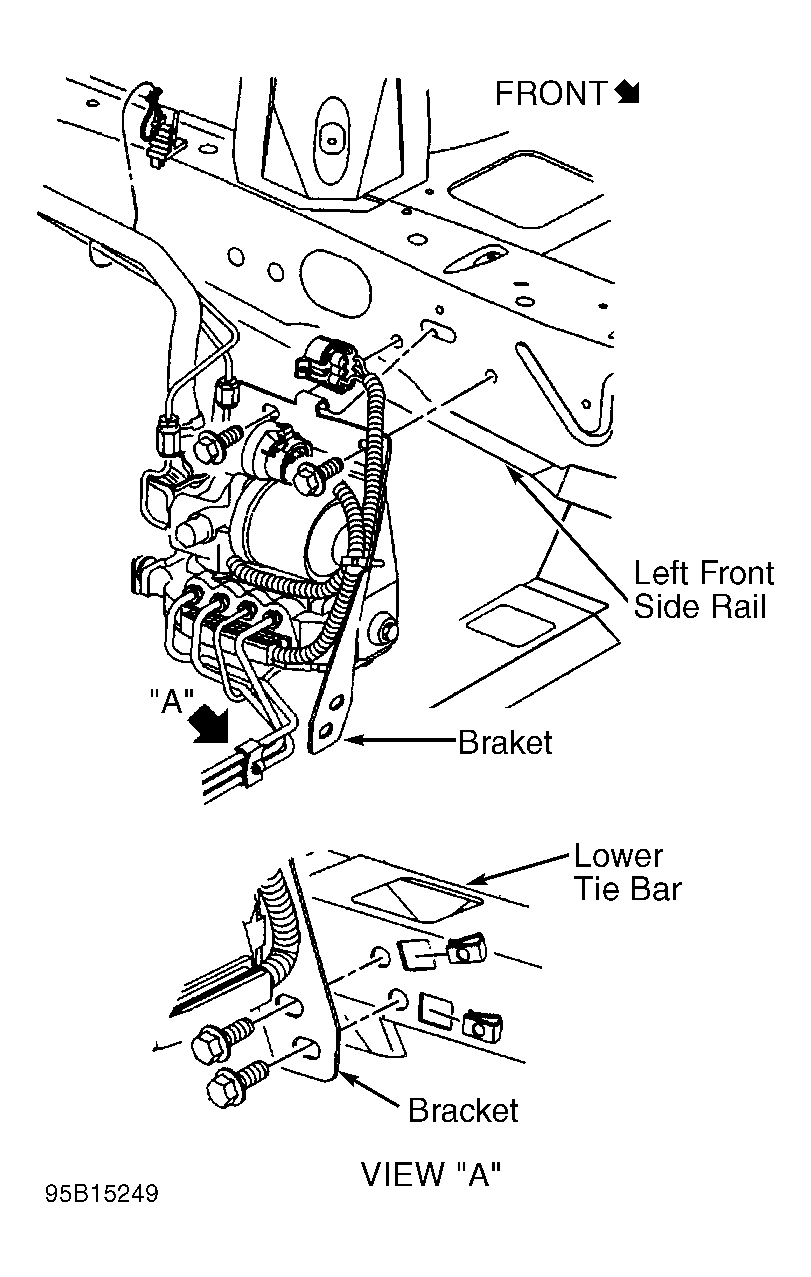

To install, reverse removal procedure. Ensure brakelines are installed in original locations. See Fig 1 . Tighten pressure modulator valve mounting bolts, nuts and brakelines to specification. See TORQUE SPECIFICATIONS . Refill brake master cylinder, bleed brakes and check for leaks. See BLEEDING BRAKE SYSTEM .
