VCM Connectors: C1

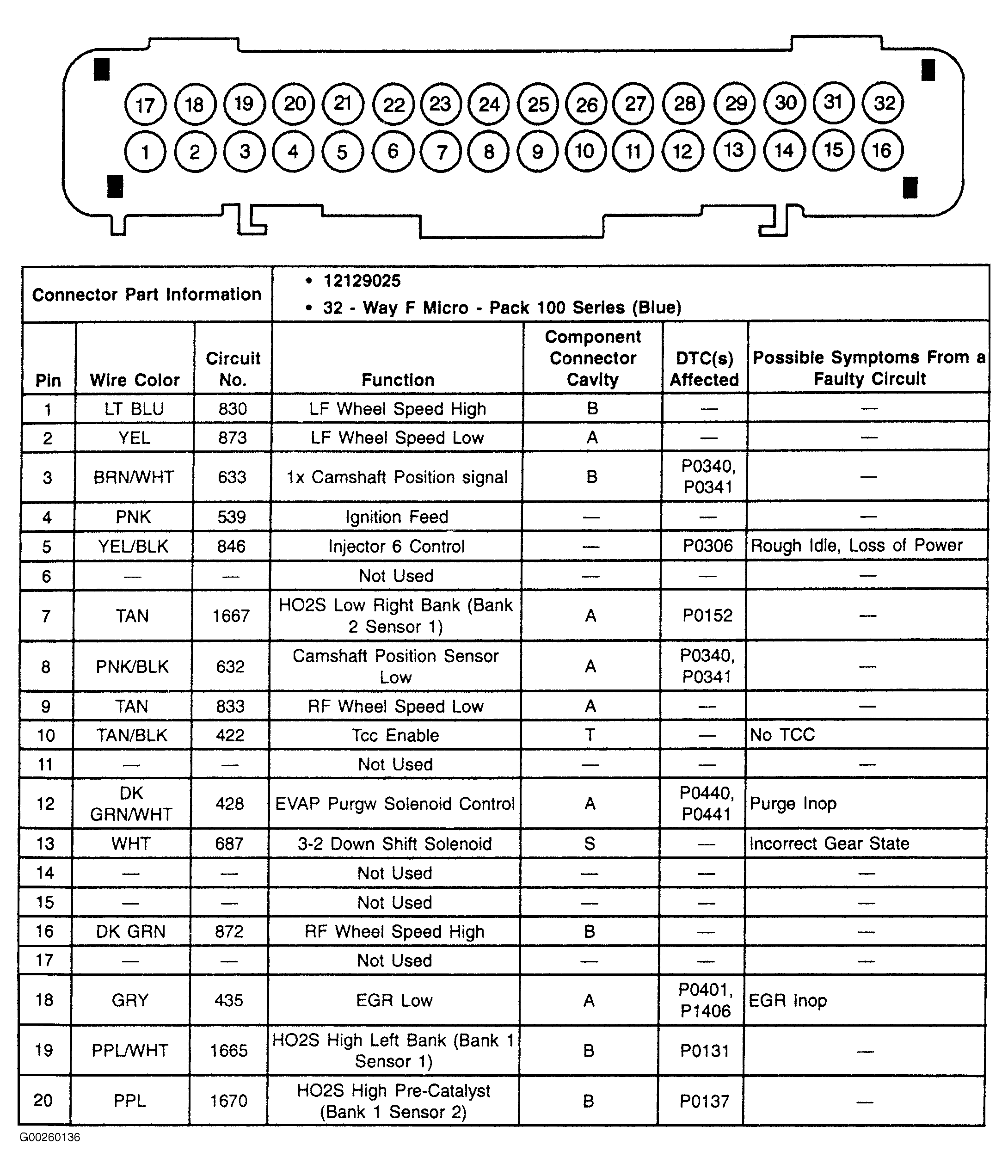

Fig 1: Identifying VCM 32-Pin Connector C1 (Blue - 1 Of 2)
G00260136Courtesy of GENERAL MOTORS CORP.

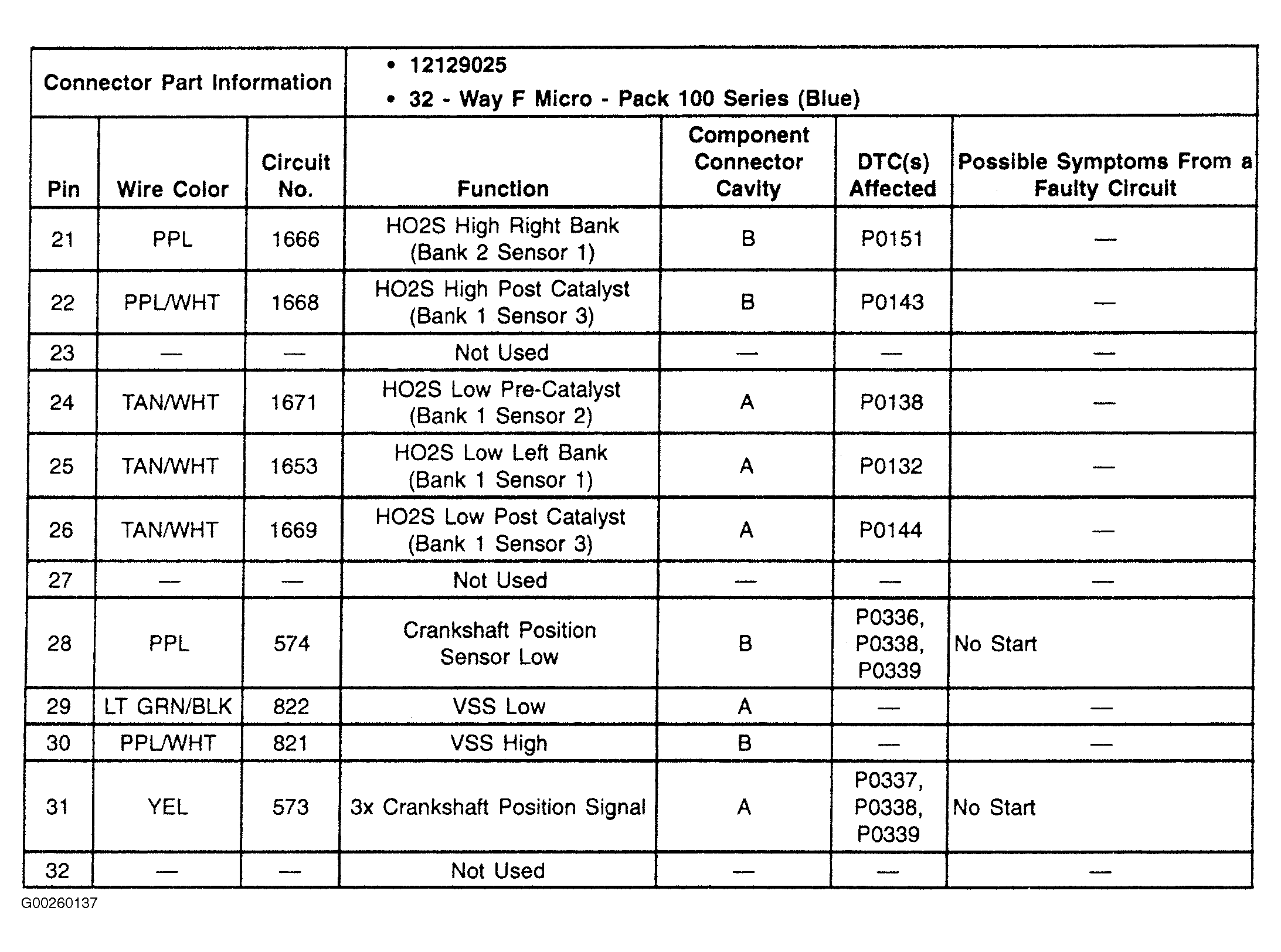

Fig 2: Identifying VCM 32-Pin Connector C1 (Blue - 2 Of 2)
G00260137Courtesy of GENERAL MOTORS CORP.
