Circuit Description
DTC 95 is used to identify open brake switch circuitry that prevents brake switch input to EBTCM from changing states when brake is applied.
DTC 95 is used in conjunction with DTC 91 to determine cause of an open brake switch malfunction.
DTC 95 can be set after initialization is completed. If brake switch input voltage is out of specification for one second indicating an open circuit, a malfunction exists.
DTC 95 is stored, TCS is disabled and TRACTION OFF indicator is turned on. ABS remains functional
NOTE:

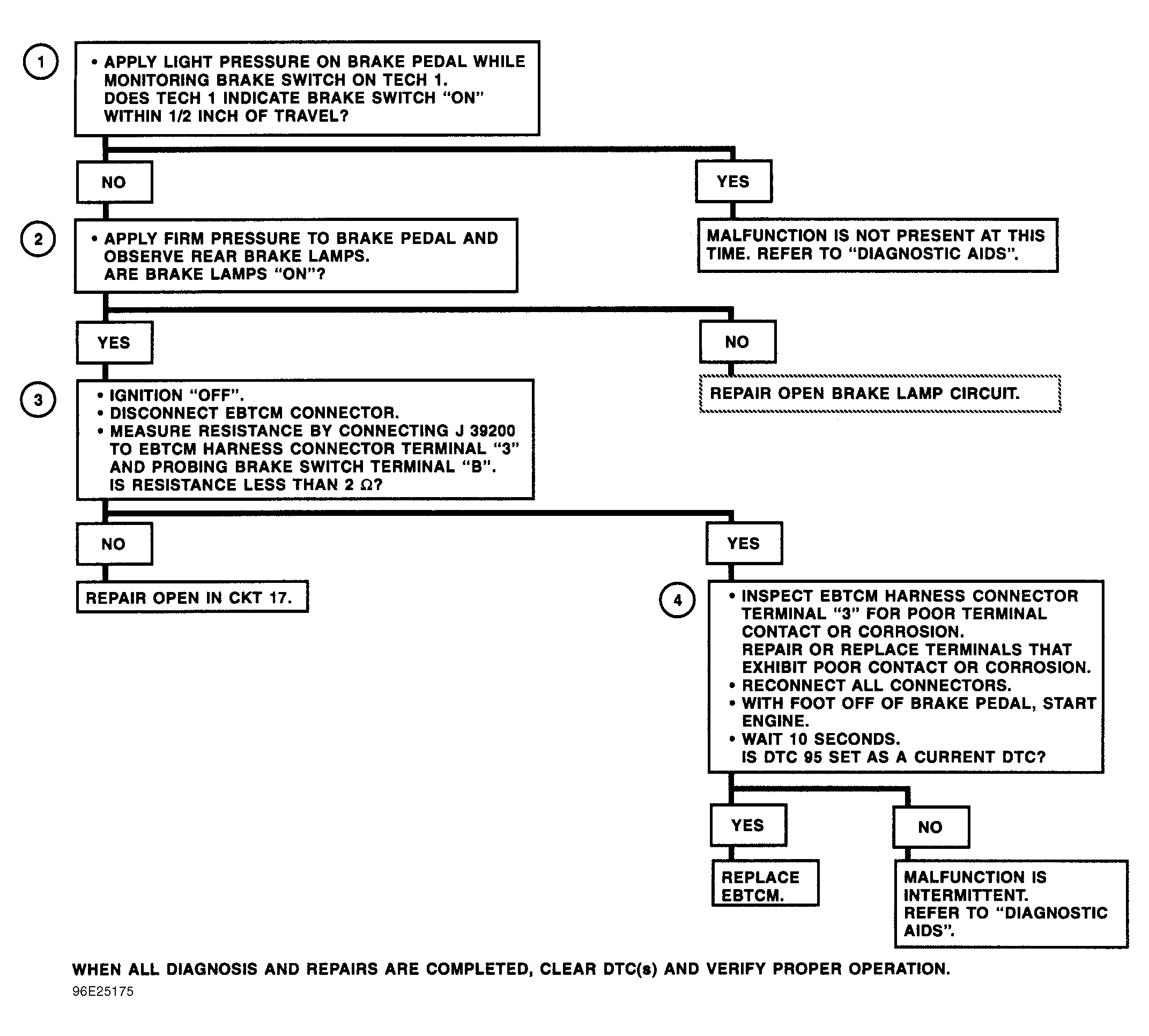

Test numbers refer to numbers on diagnostic chart. To identify circuits and terminals referenced in text and flowcharts, see WIRING DIAGRAMS
.
