Home › Oldsmobile › 1997 › Bravada › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C105

C100 To C603: C105

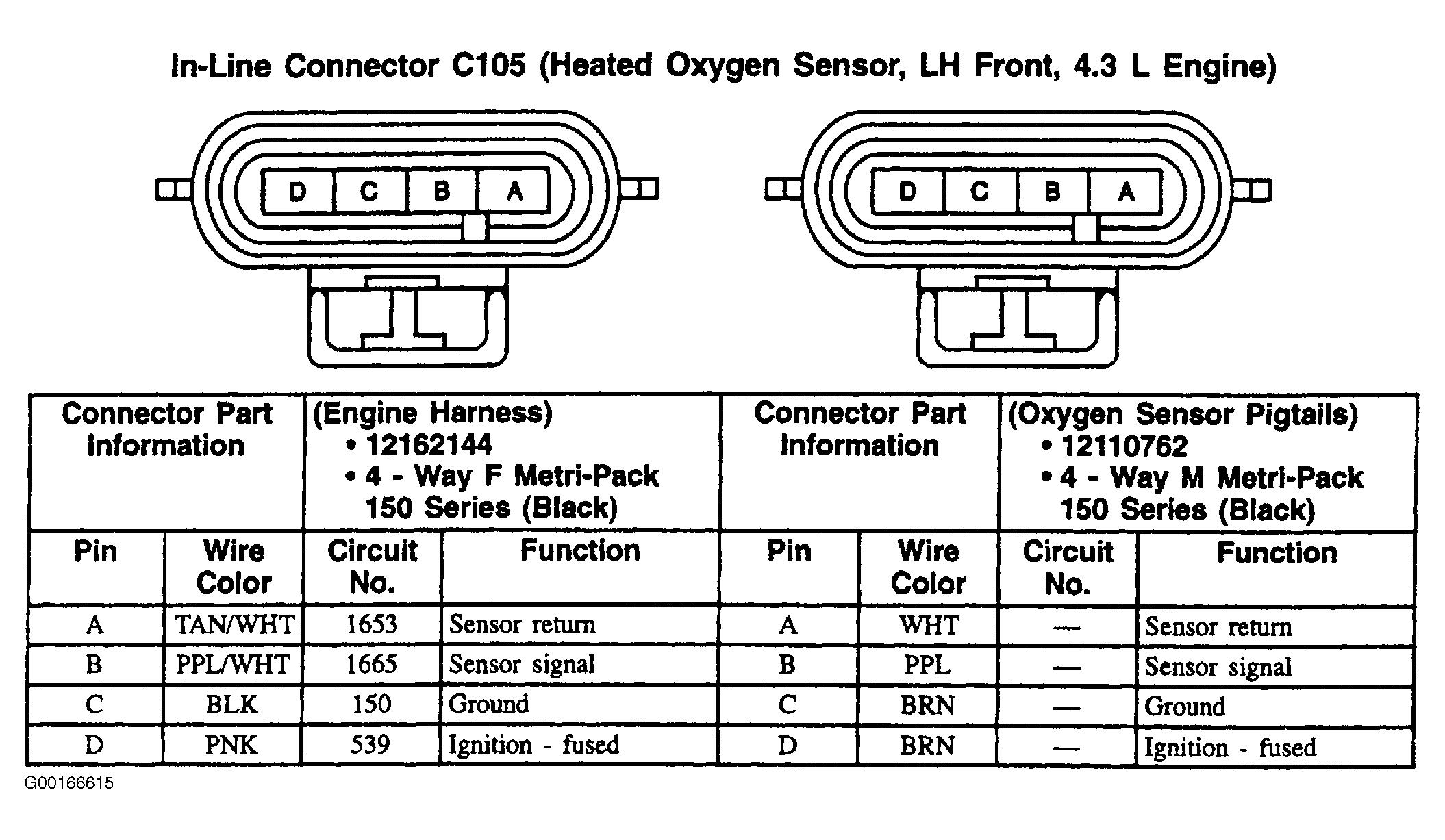

Fig 1: C105 - 4-Pin Connector, Black
G00166615Courtesy of GENERAL MOTORS CORP.
