Connector Terminal Identification
›
Rear Side Door Jamb Switch
Rear Side Door Jamb Switch

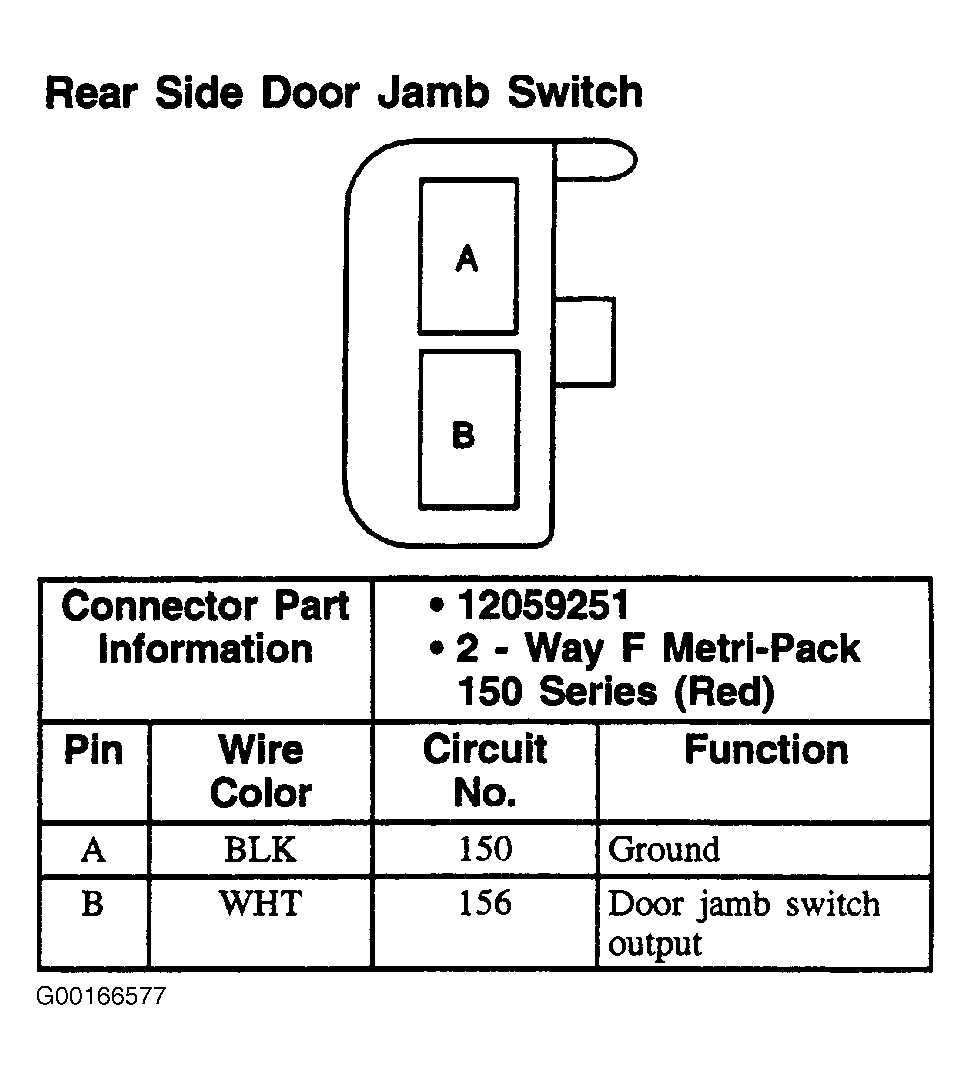

Fig 1: Rear Side Door Jamb Switch - 2-Pin Connector, Red
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
