Left Instrument Panel Junction Block
Left Instrument Panel Junction Block
NOTE:
Left instrument panel junction block is located on the end of driver's side of instrument panel. See
Fig 1
.

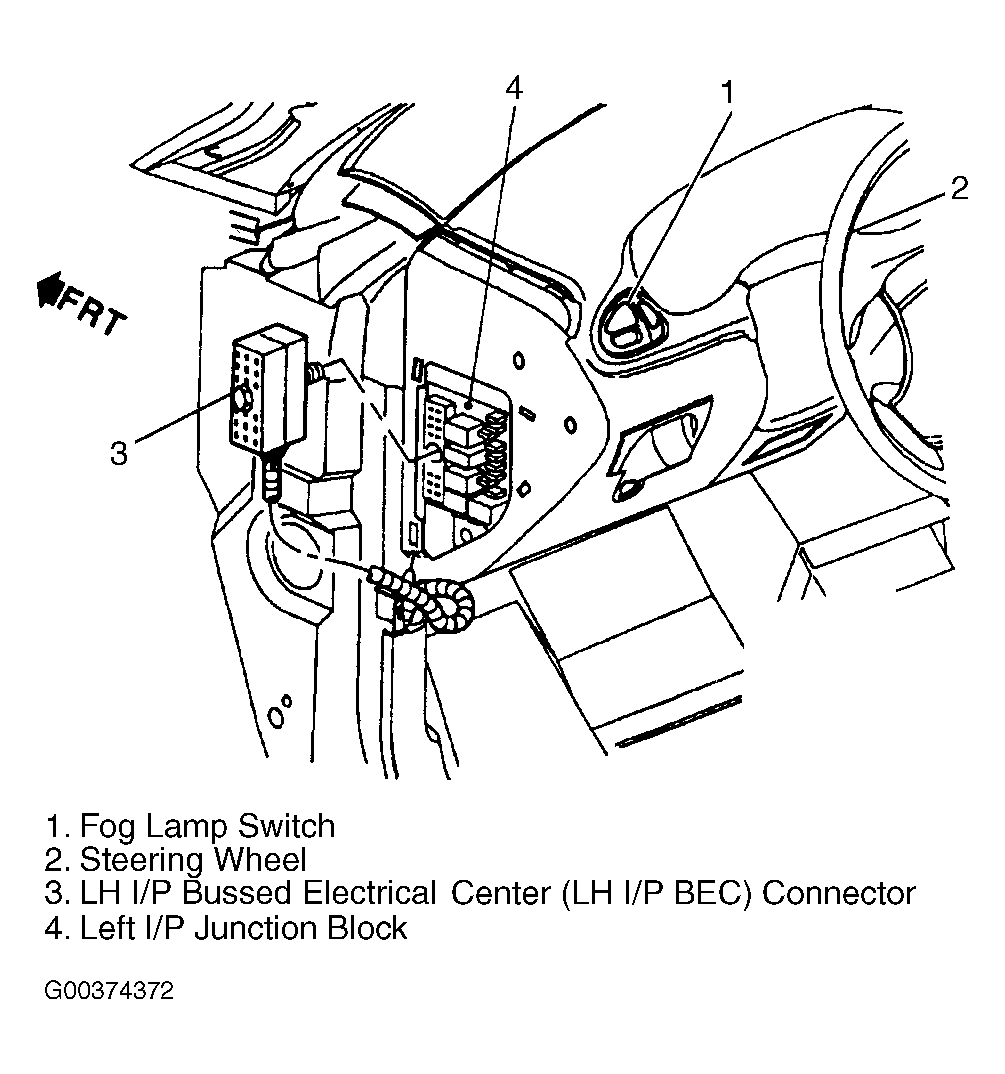

Fig 1: Locating Left Instrument Panel Junction Block
Courtesy of GENERAL MOTORS CORP.

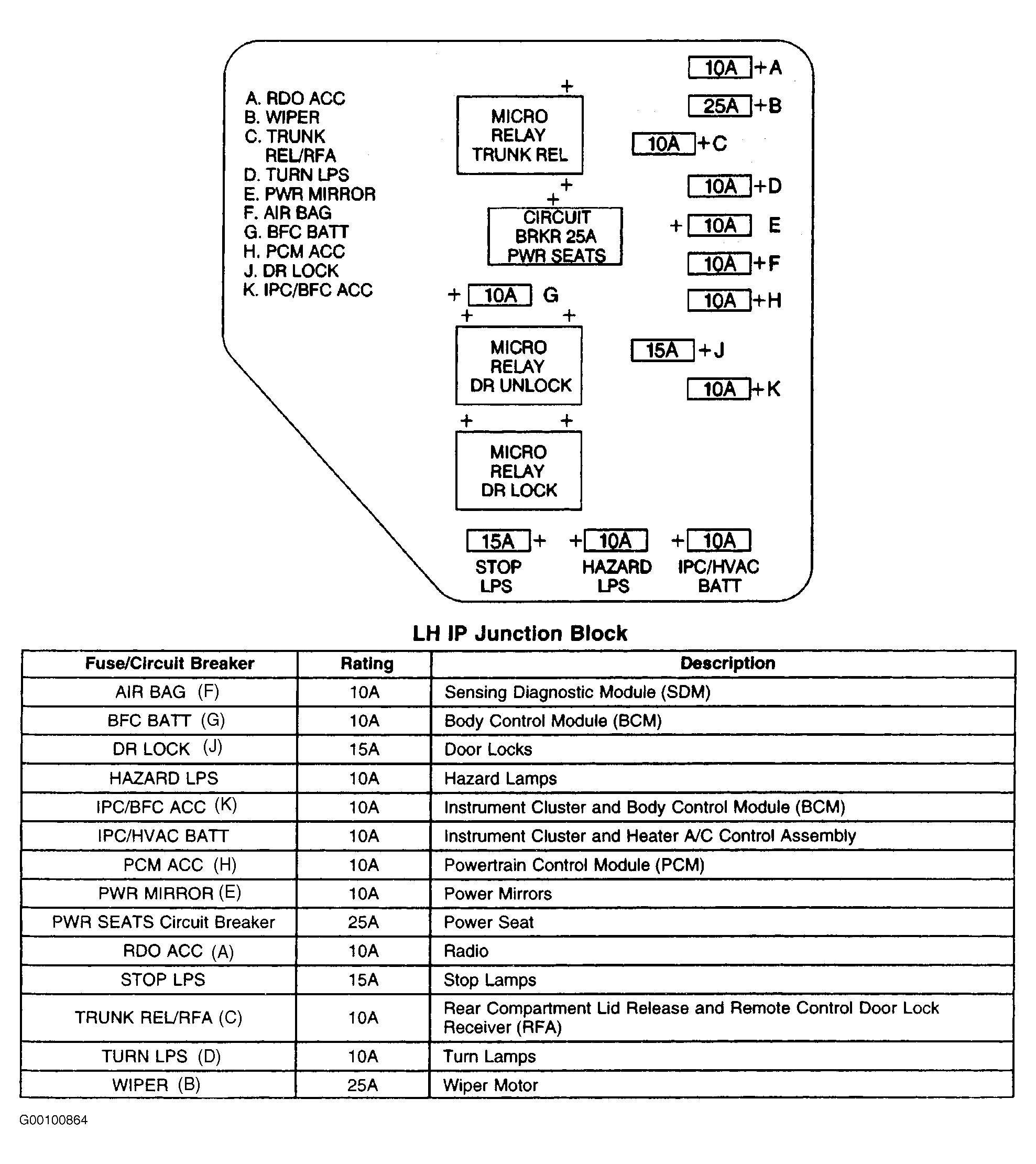

Fig 2: Identifying Left Instrument Panel Junction Block Components
Courtesy of GENERAL MOTORS CORP.
