Connector Terminal Identification
›
Air Temperature Actuator
›
Cutlass & MALIBU
Cutlass & MALIBU

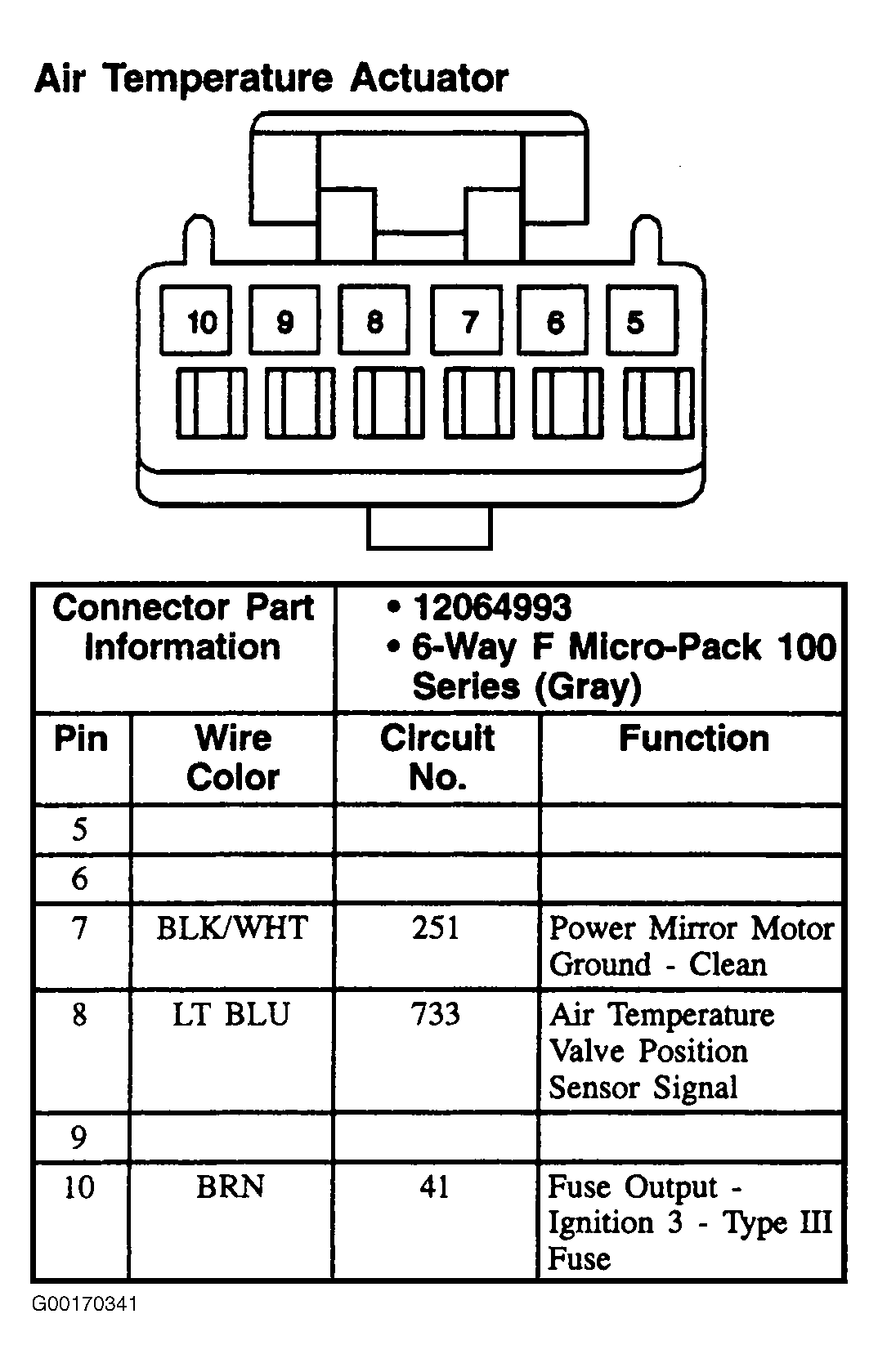

Fig 1: Air Temperature Actuator (Cutlass & Malibu) - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
