Cutlass & MALIBU

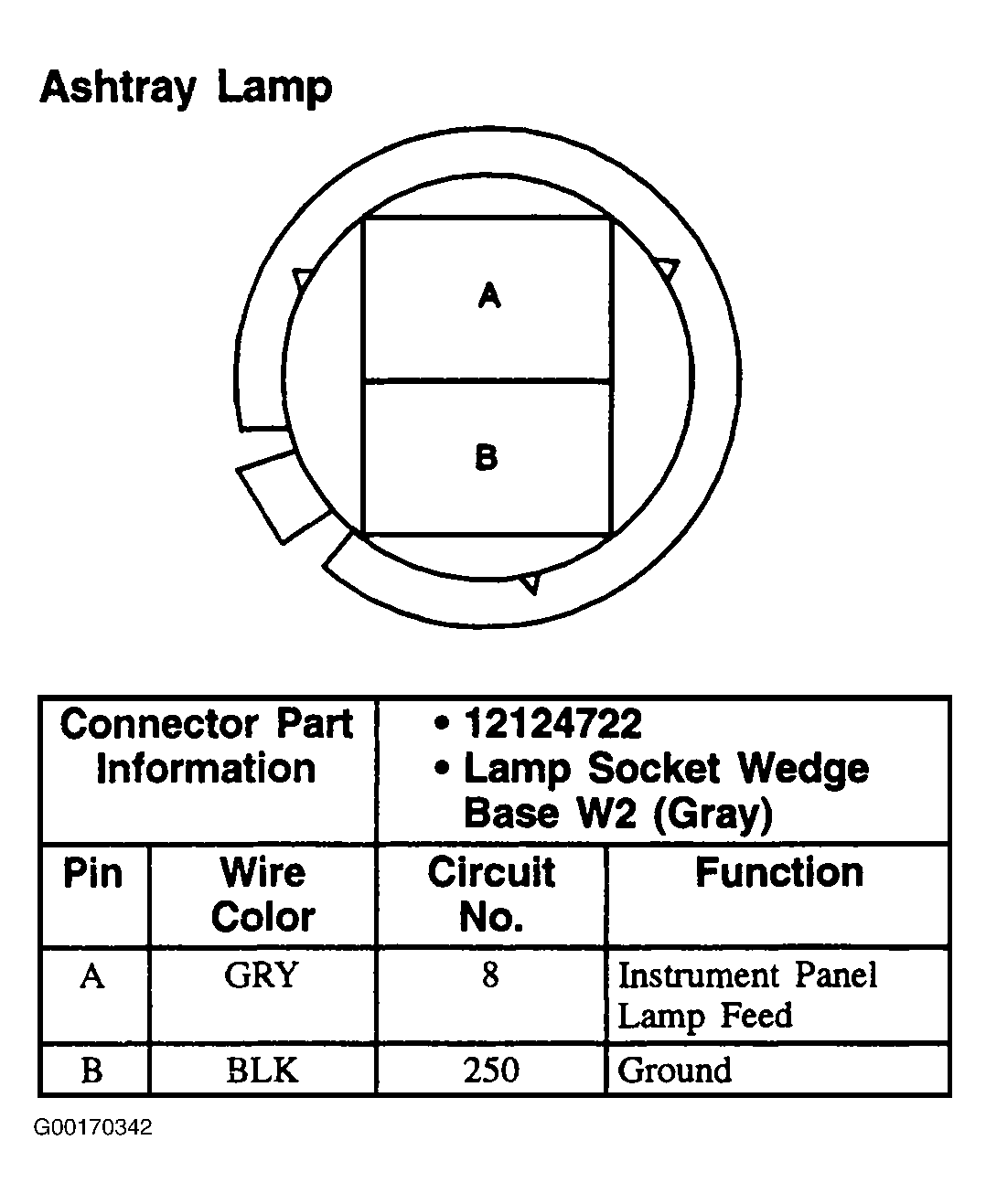

Fig 1: Ashtray Lamp (Cutlass & Malibu) - 2-Pin Connector (Gray)
G00170342Courtesy of GENERAL MOTORS CORP.
