Connector Terminal Identification
›
Blower Resistor Assembly
›
Cutlass & MALIBU
Cutlass & MALIBU

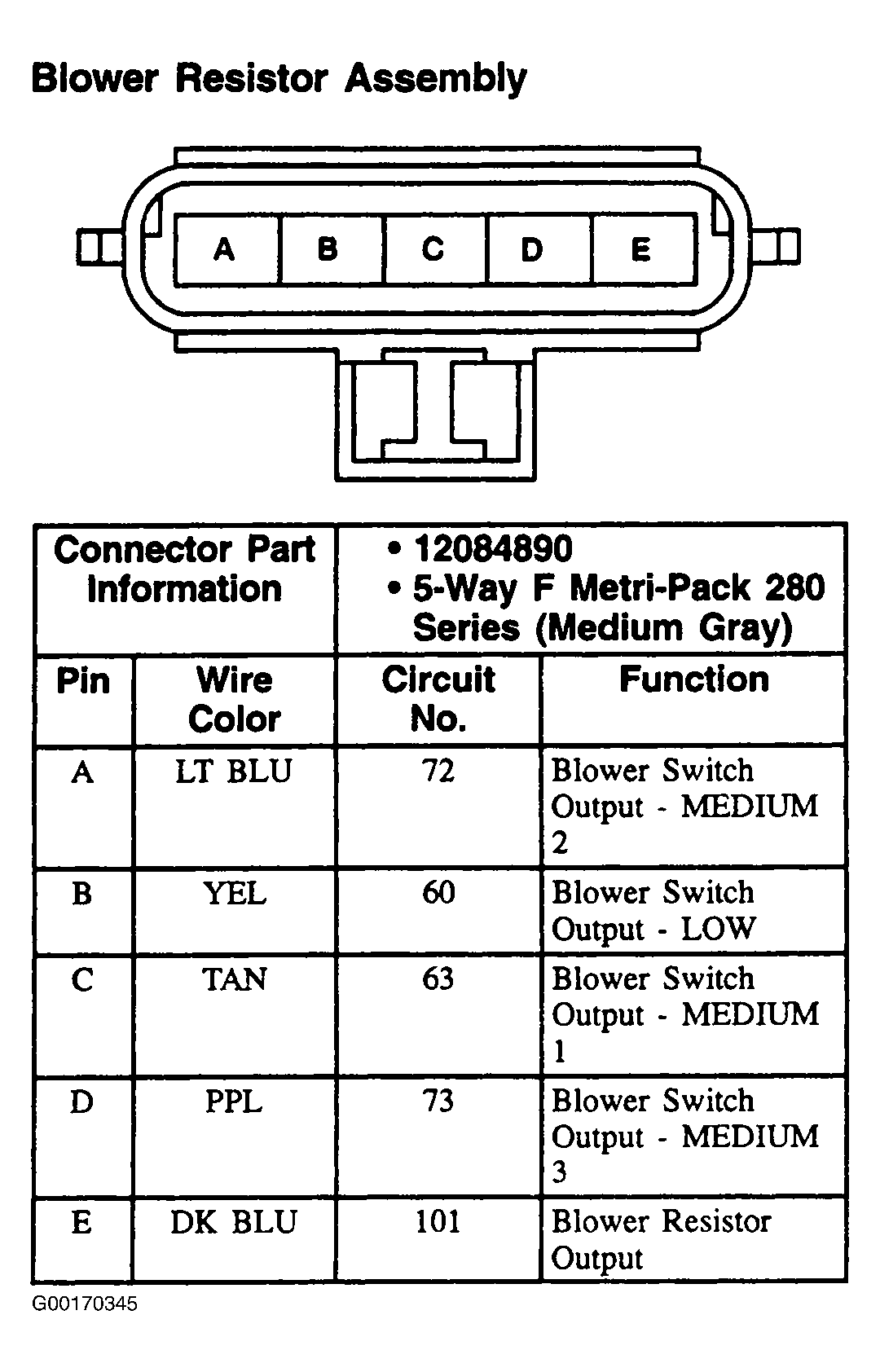

Fig 1: Blower Resistor Assembly (Cutlass & Malibu) - 5-Pin Connector (Medium Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
