Body Function Controller (BFC) Connector C1

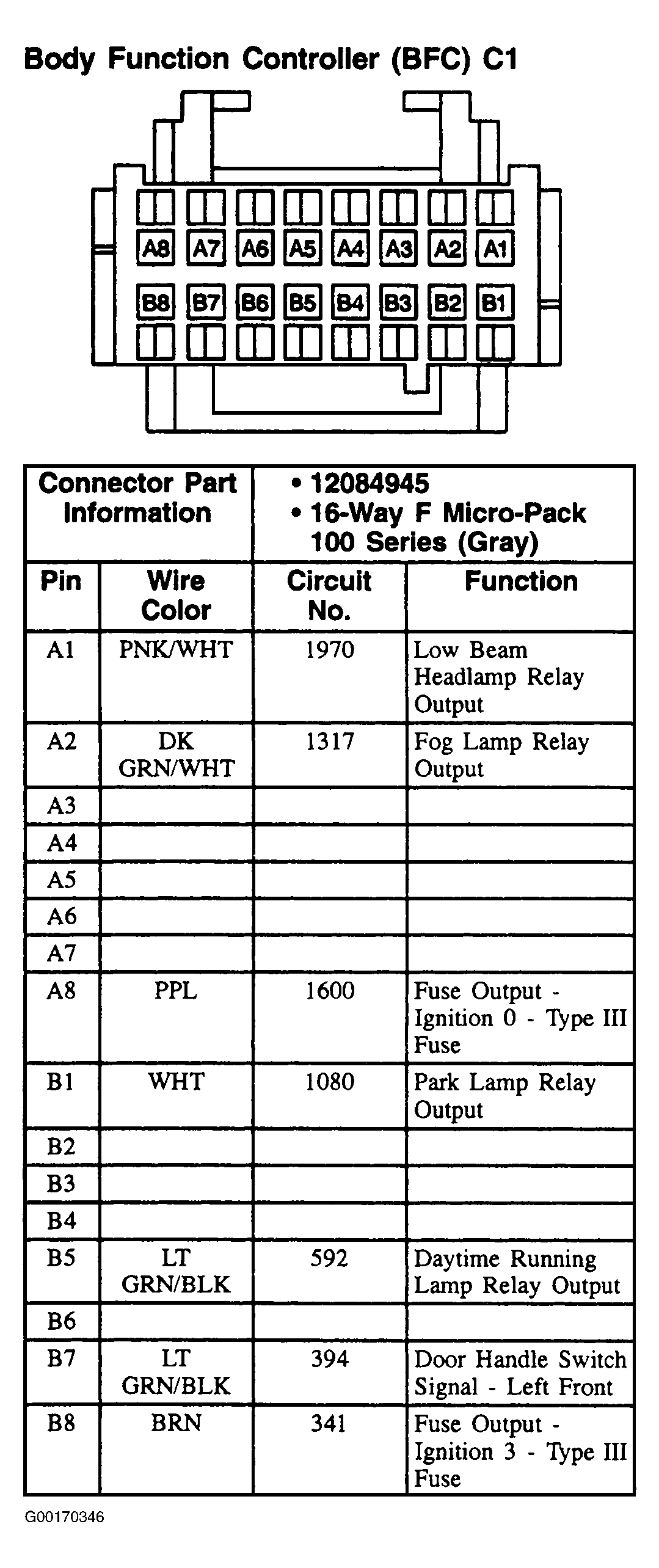

Fig 1: Body Function Controller (BFC) Connector C1 (Cutlass & Malibu) - 16-Pin Connector (Gray)
G00170346Courtesy of GENERAL MOTORS CORP.
