Connector Terminal Identification
›
Body Function Controller (BFC)
›
Cutlass & MALIBU
›
Body Function Controller (BFC) Connector C2
Body Function Controller (BFC) Connector C2

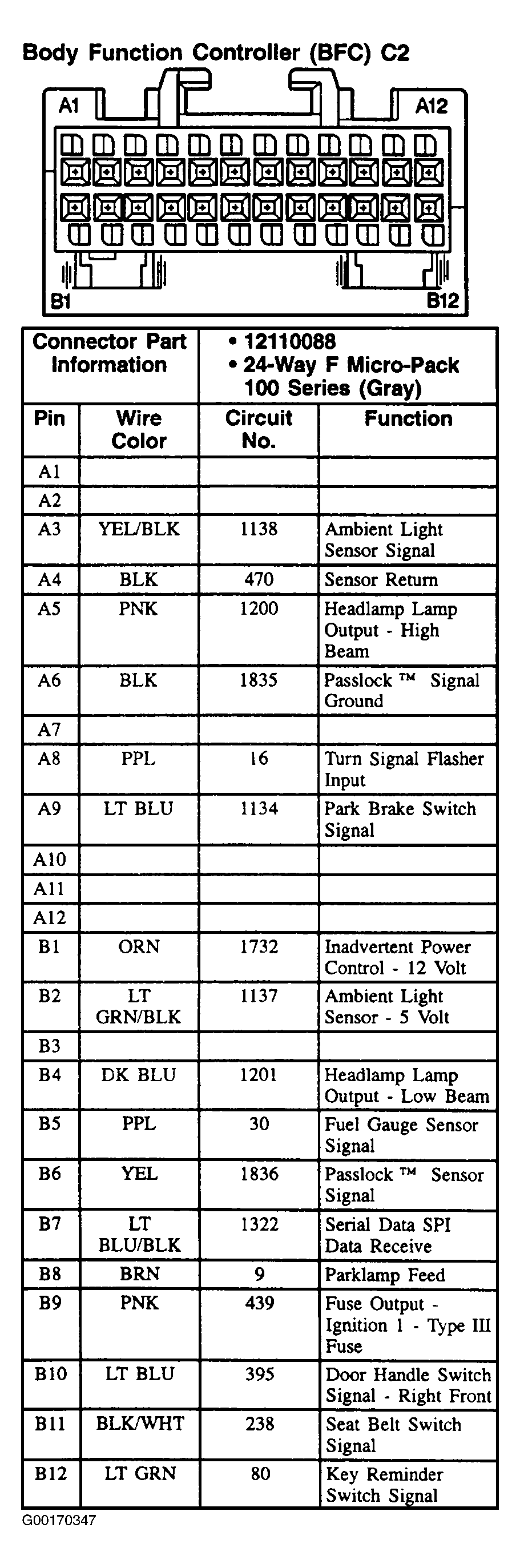

Fig 1: Body Function Controller (BFC) Connector C2 (Cutlass & Malibu) - 24-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
