Body Function Controller (BFC) Connector C3

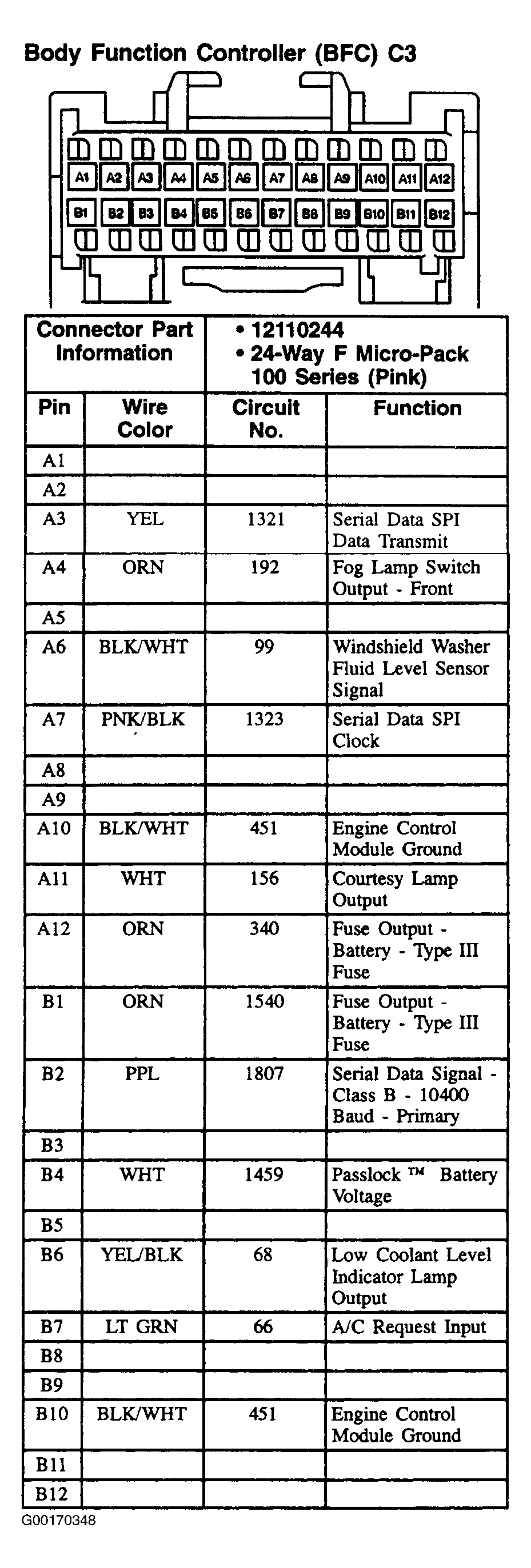

Fig 1: Body Function Controller (BFC) Connector C3 (Cutlass & Malibu) - 24-Pin Connector (Pink)
G00170348Courtesy of GENERAL MOTORS CORP.
