Connector Terminal Identification
›
Brake Switch
›
Cutlass & MALIBU
›
Brake Switch Connector C2
Brake Switch Connector C2

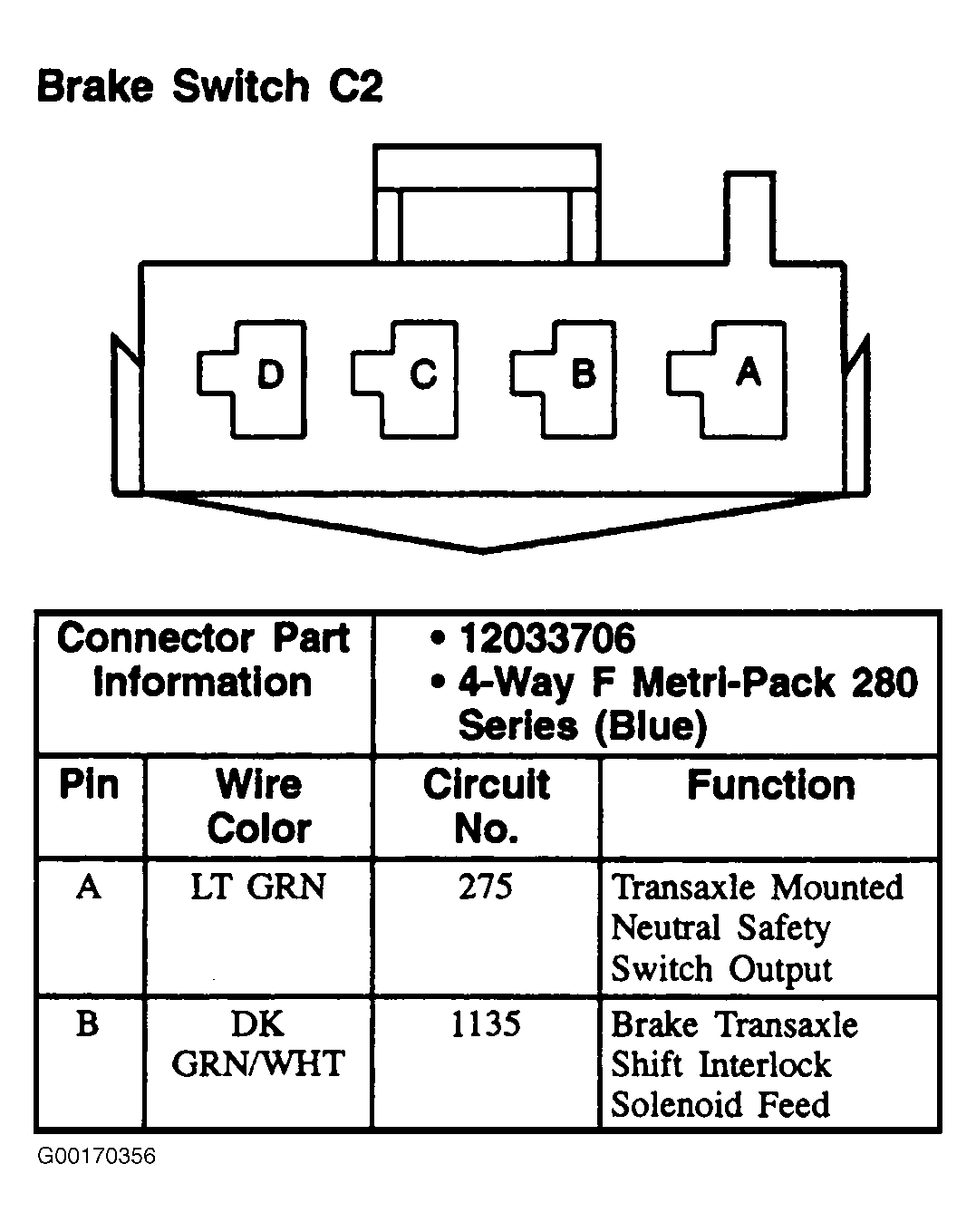

Fig 1: Brake Switch Connector C2 (Cutlass & Malibu) - 4-Pin Connector (Blue)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
