Connector Terminal Identification
›
Courtesy Lamp (LH)
›
Cutlass & MALIBU
Cutlass & MALIBU

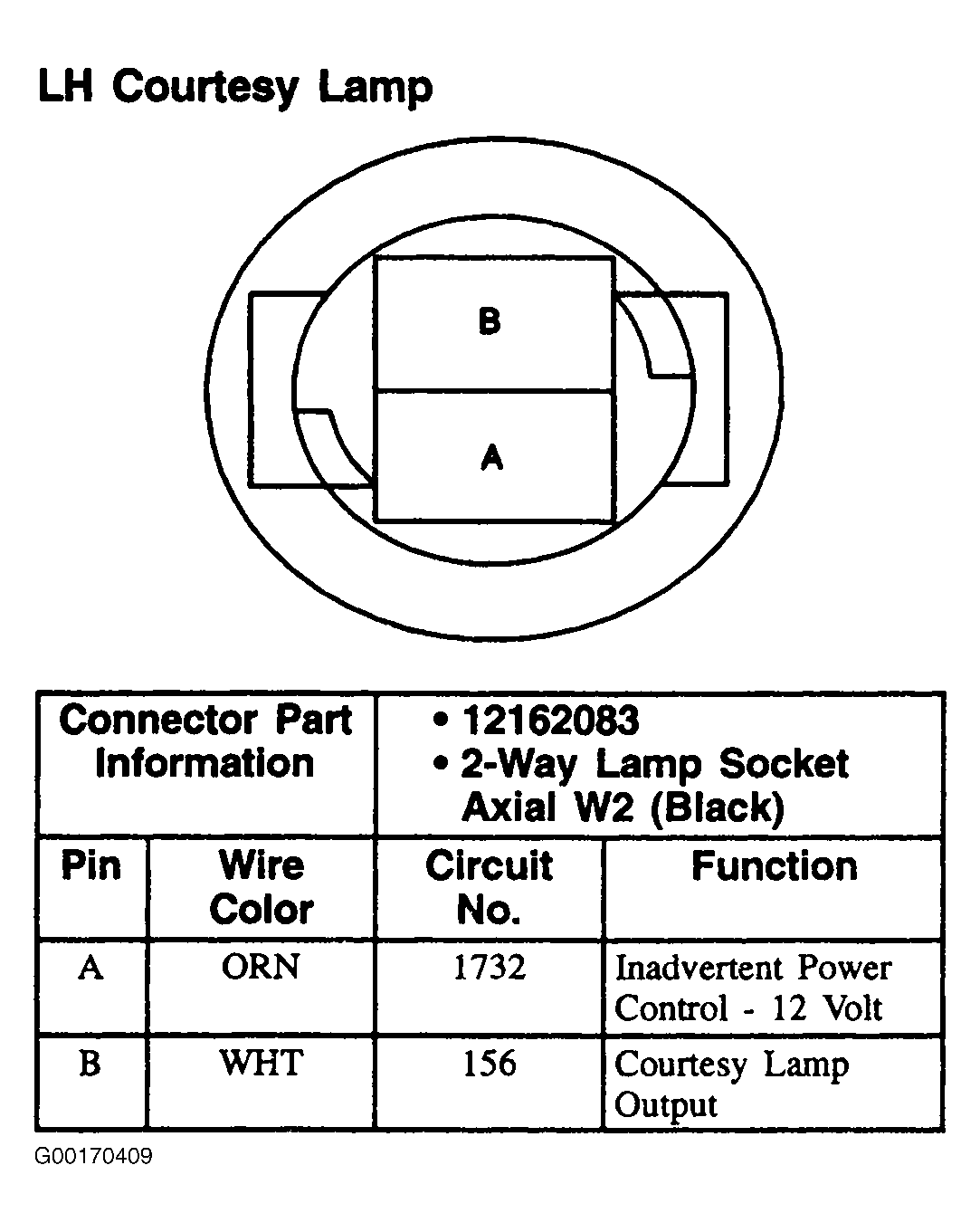

Fig 1: Courtesy Lamp (LH - Cutlass & Malibu) - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
