Connector Terminal Identification
›
Cruise Control Module
›
ACHIEVA, Grand Am & Skylark
ACHIEVA, Grand Am & Skylark

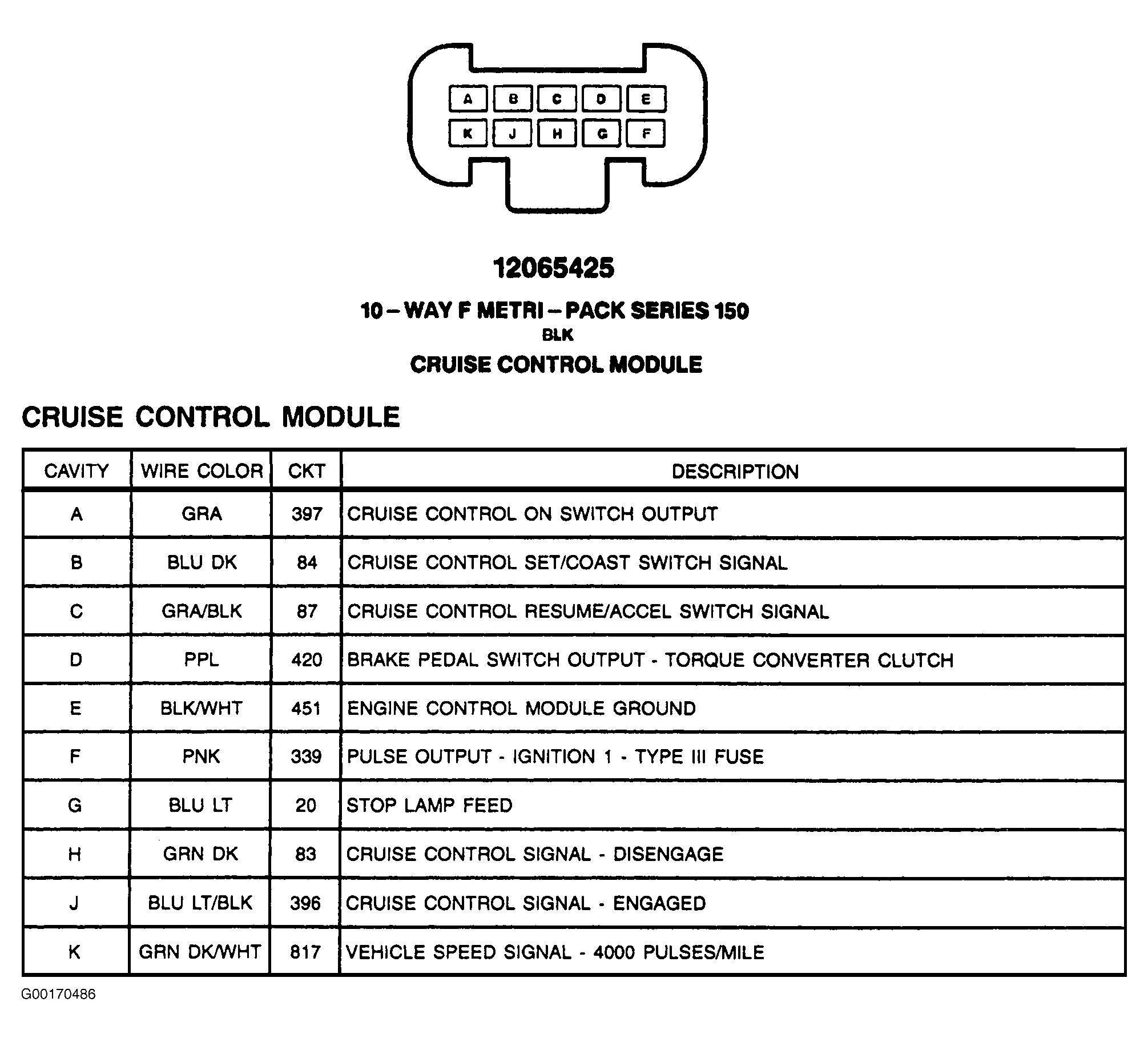

Fig 1: Cruise Control Module (Achieva, Grand Am & Skylark) - 10-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
