Connector Terminal Identification
›
Data Link
›
Cutlass & MALIBU
Cutlass & MALIBU

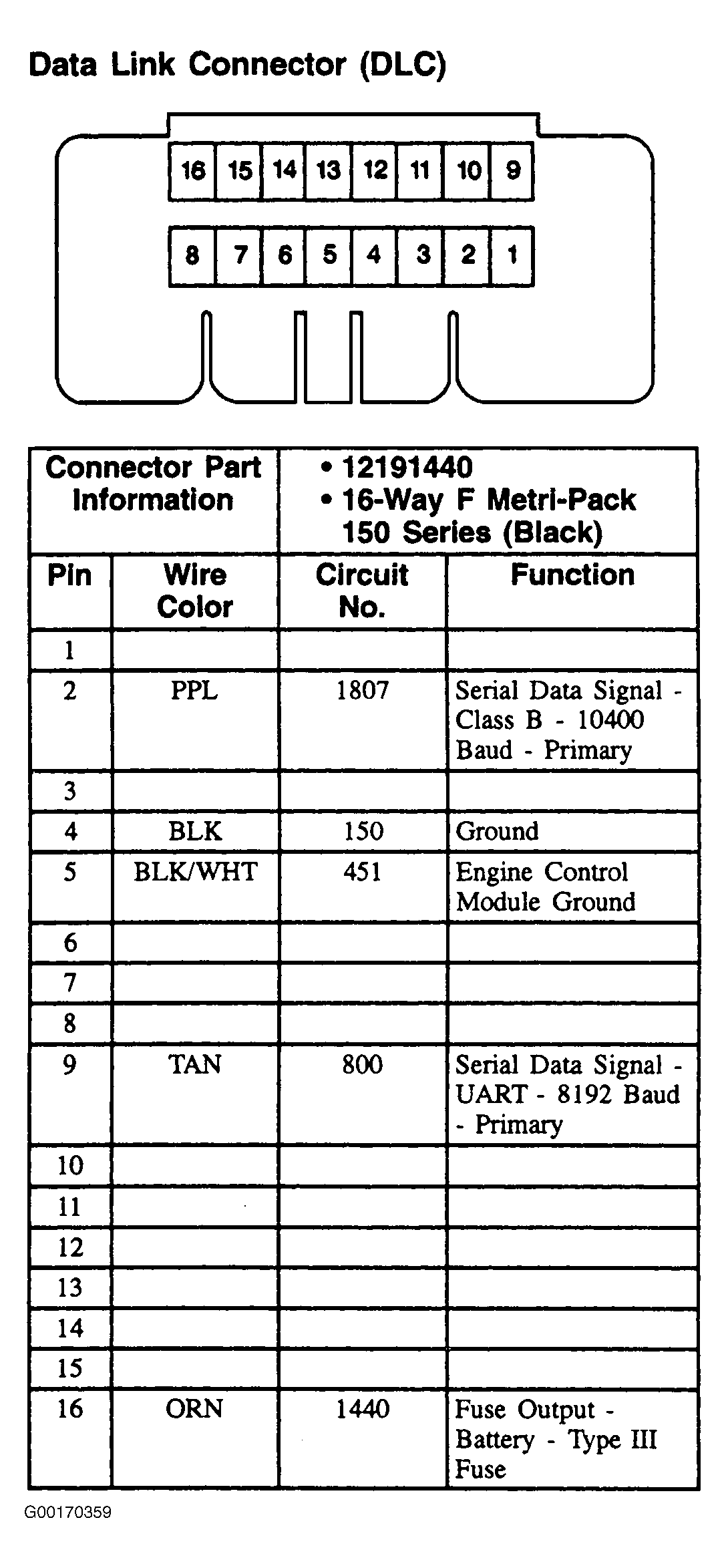

Fig 1: Data Link (Cutlass & Malibu) - 16-Pin Connector (Black)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
