Connector Terminal Identification
›
Door Lock Switch
›
Cutlass & MALIBU
Cutlass & MALIBU

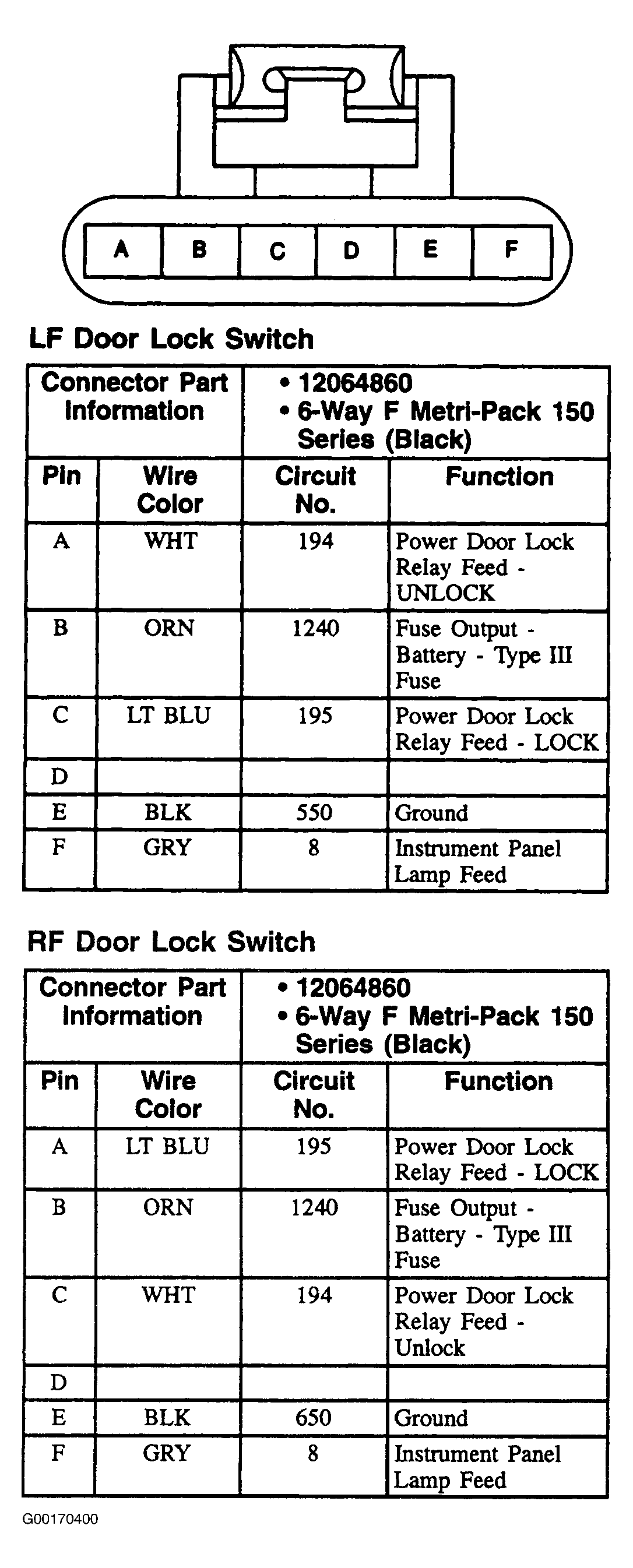

Fig 1: Door Lock Switch (LF & RF - Cutlass & Malibu) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
