Connector Terminal Identification
›
Electronic Brake Control Module (EBCM)
›
ACHIEVA, Grand Am & Skylark
ACHIEVA, Grand Am & Skylark

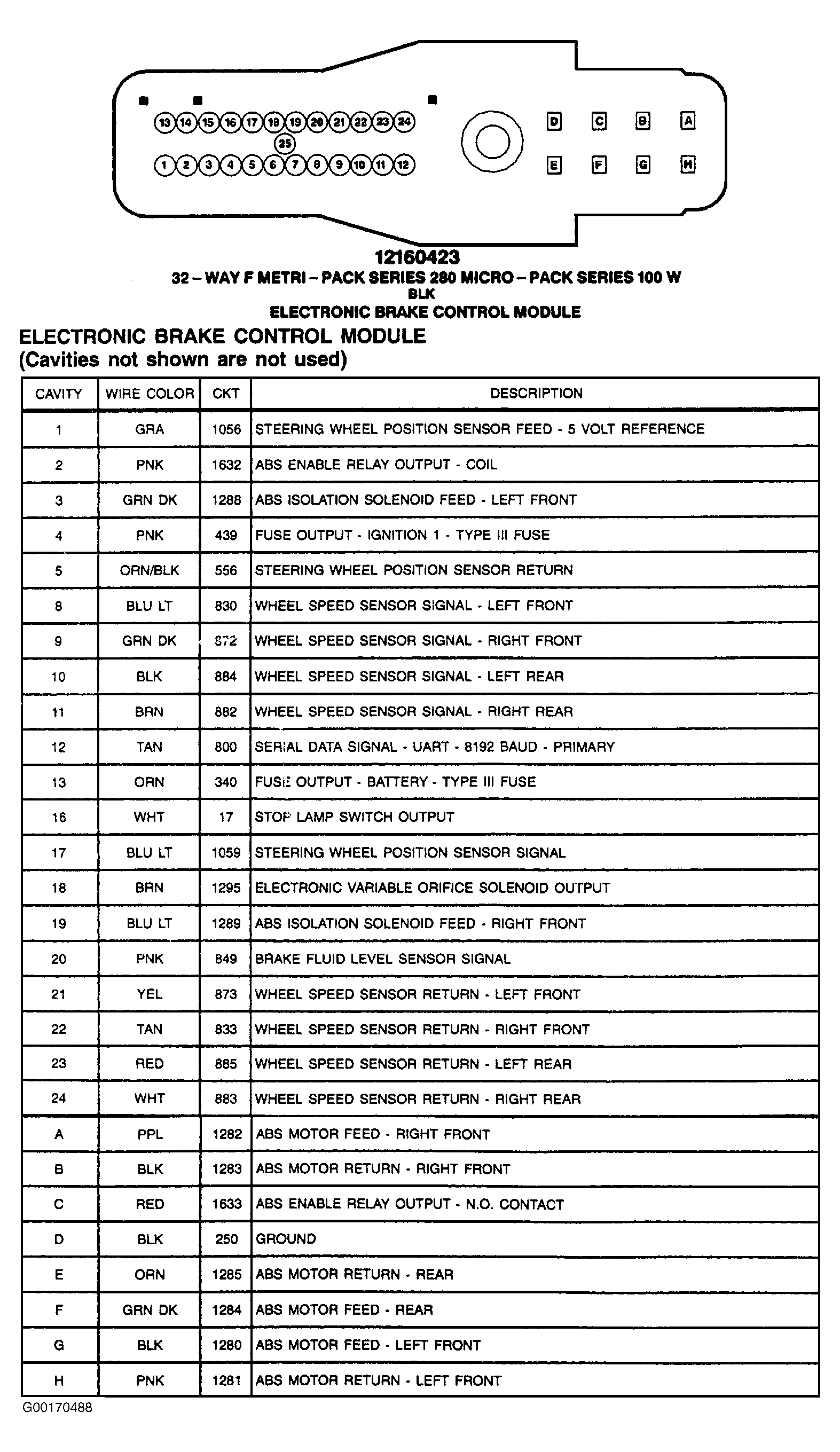

Fig 1: Electronic Brake Control Module (Achieva, Grand Am & Skylark) - 32-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
