Connector Terminal Identification
›
Engine Coolant Level Switch & Engine Oil Level Switch (3.1L)
›
Cutlass & MALIBU
Cutlass & MALIBU

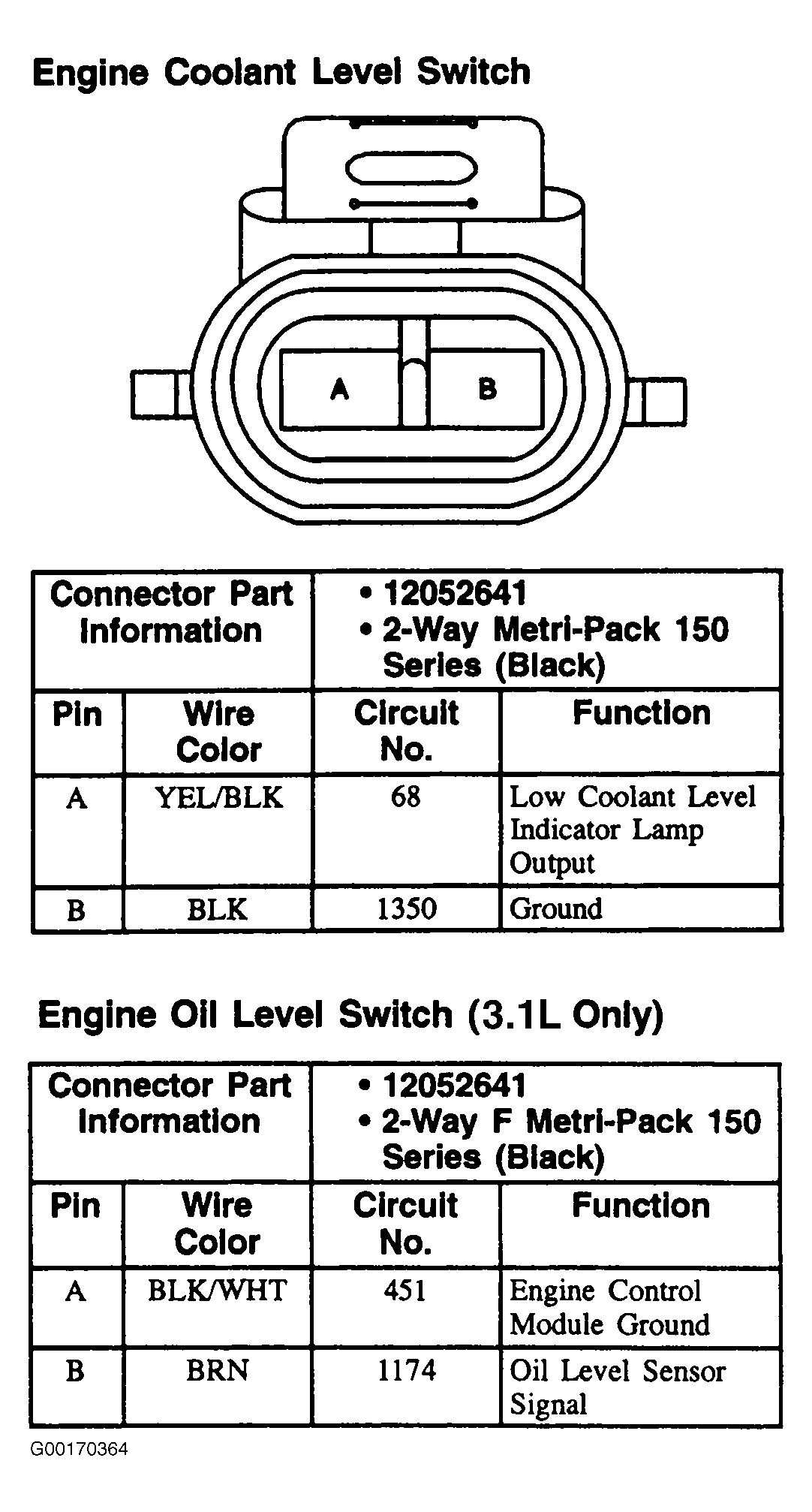

Fig 1: Engine Coolant Level Switch & Engine Oil Level Switch (3.1L - Cutlass & Malibu) - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
