Connector Terminal Identification
›
Engine Oil Pressure Sensor
›
Cutlass & MALIBU
Cutlass & MALIBU

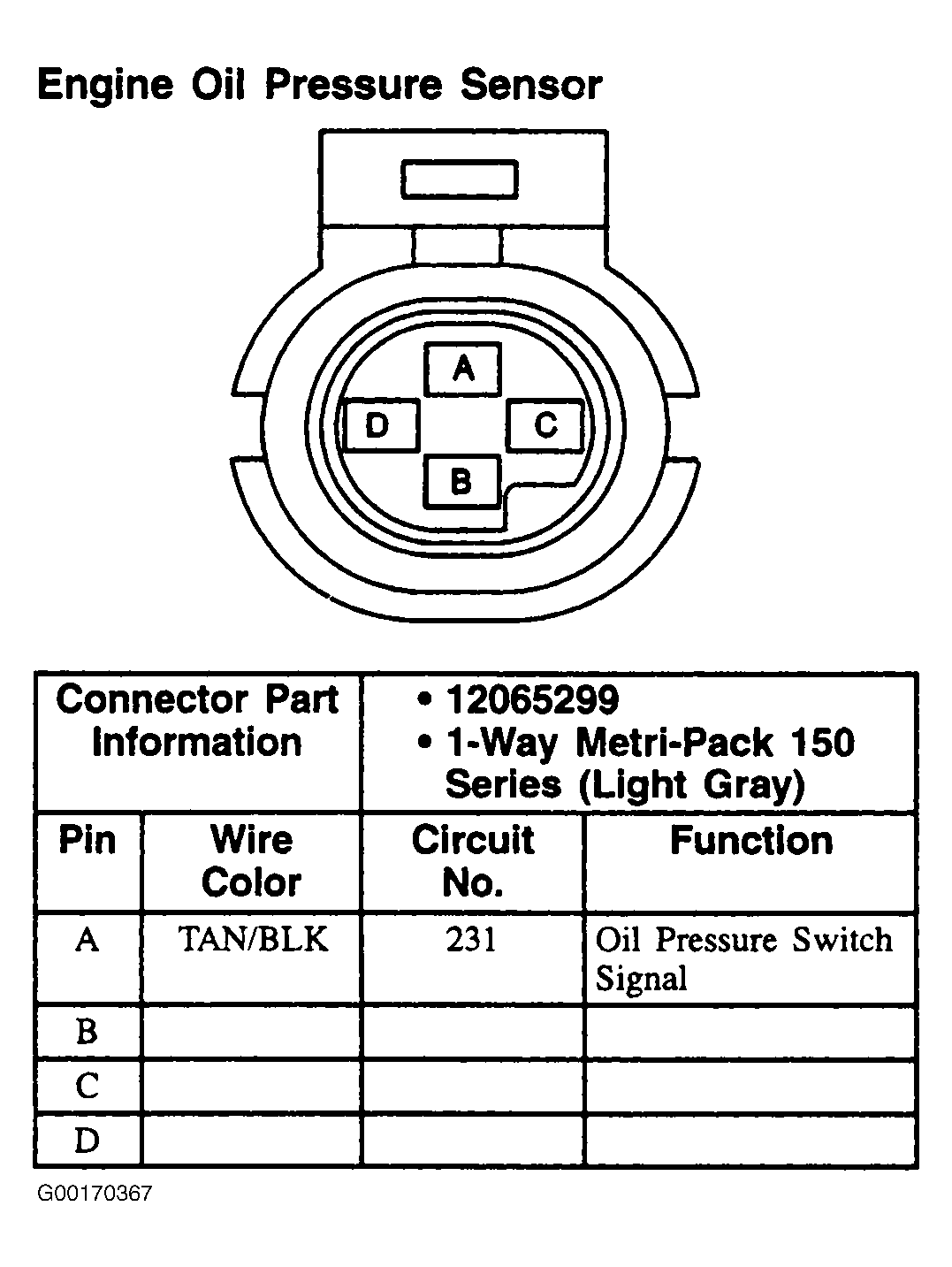

Fig 1: Engine Oil Pressure Sensor (Cutlass & Malibu) - 4-Pin Connector (Light Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
