Connector Terminal Identification
›
Fuel Tank Pressure Sensor
›
Cutlass & MALIBU
Cutlass & MALIBU

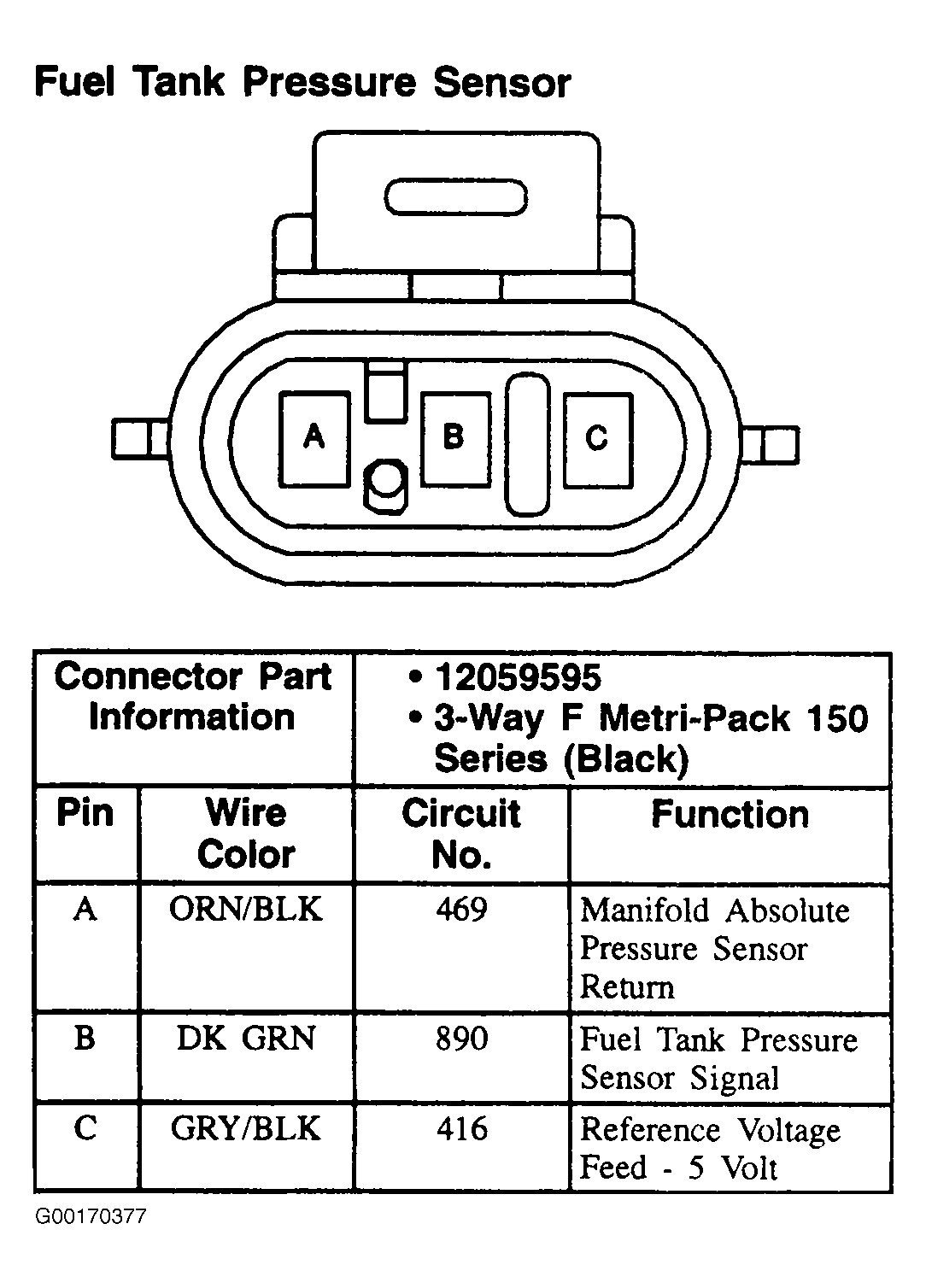

Fig 1: Fuel Tank Pressure Sensor (Cutlass & Malibu) - 3-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
