Connector Terminal Identification
›
Generator
›
Cutlass & MALIBU
Cutlass & MALIBU

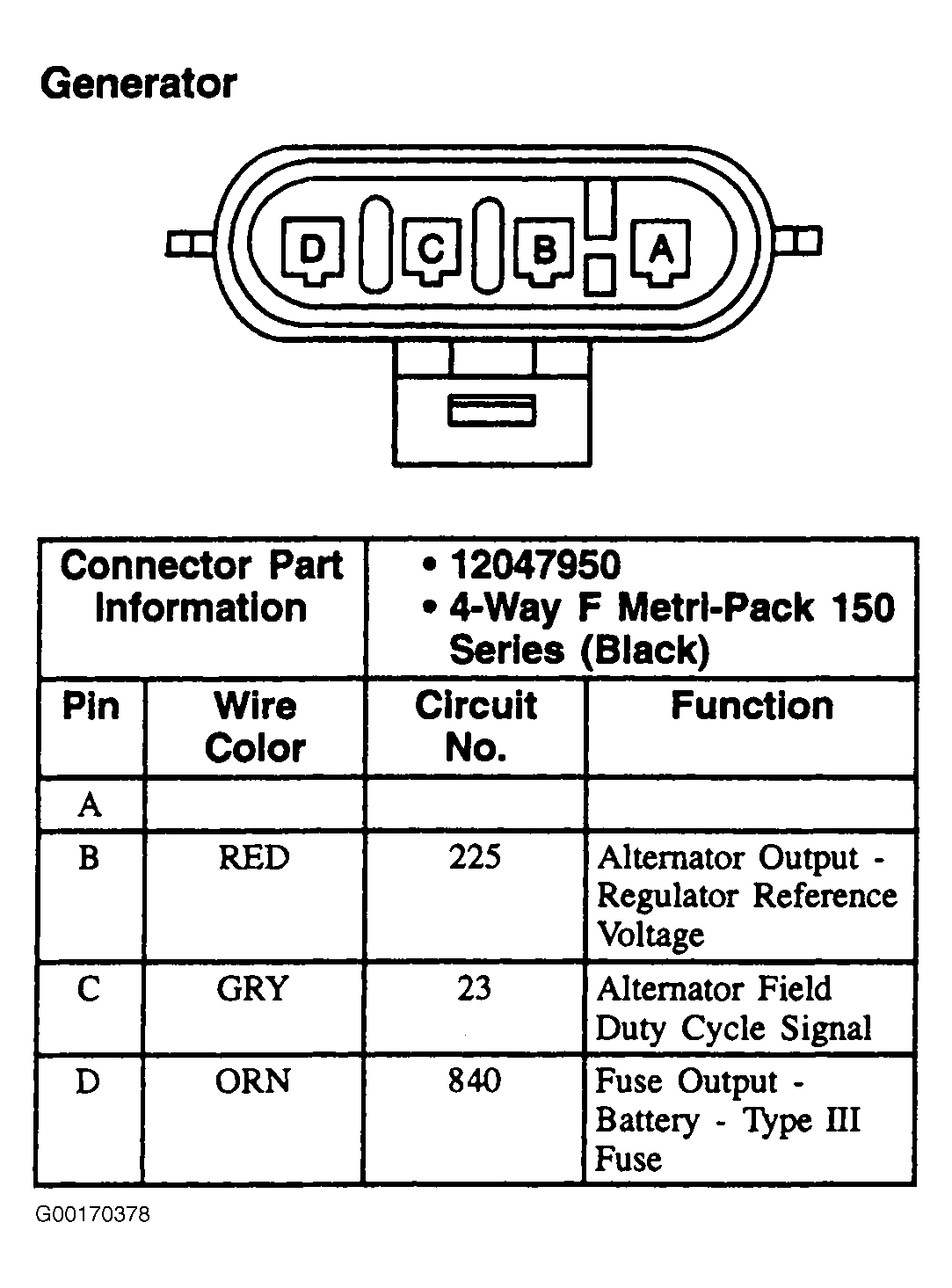

Fig 1: Generator (Cutlass & Malibu) - 4-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
