Connector Terminal Identification
›
Heater A/C Control Assembly
›
ACHIEVA, Grand Am & Skylark
ACHIEVA, Grand Am & Skylark

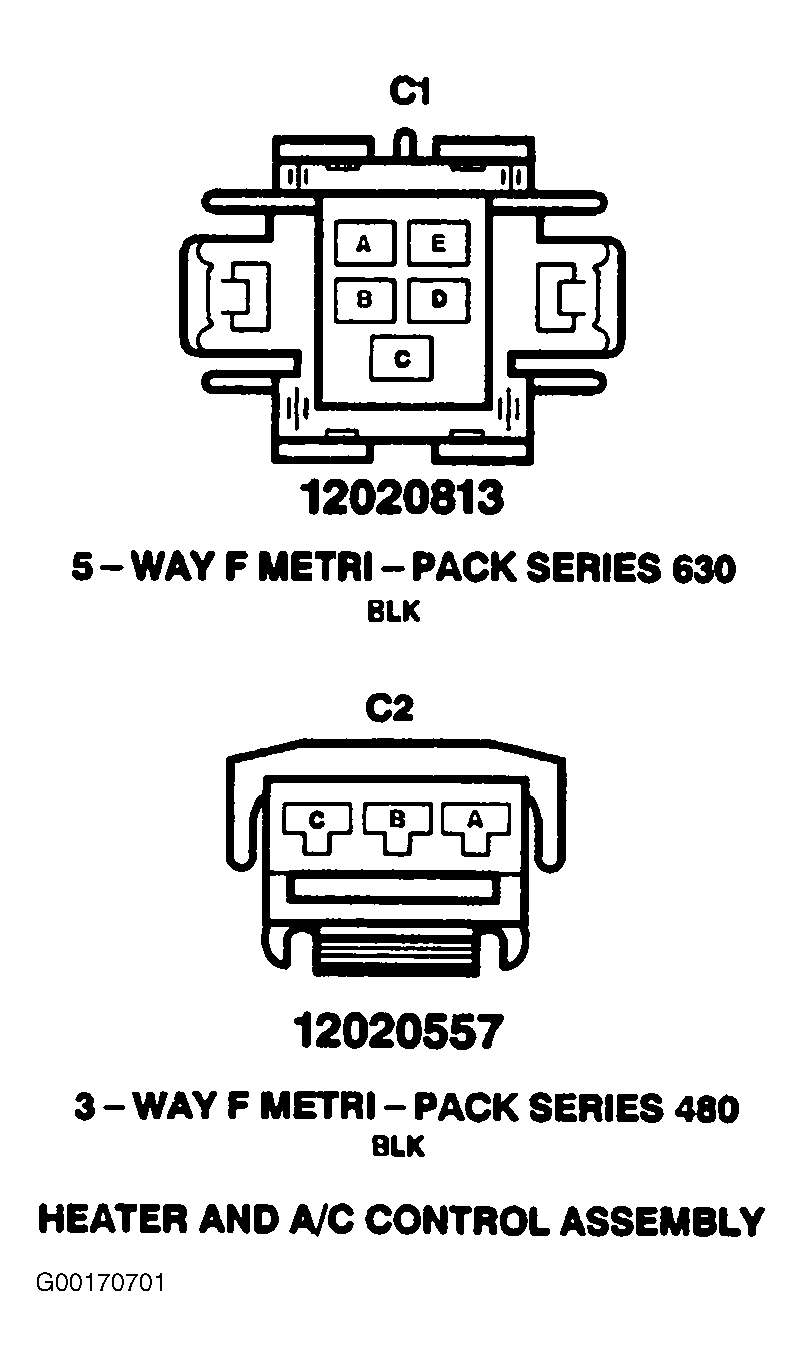

Fig 1: Heater & A/C Control Assembly Connectors C1 & C2 (Achieva, Grand Am & Skylark) - 5-Pin Connector (Black) & 3-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
