Connector Terminal Identification
›
Ignition Switch
›
Cutlass & MALIBU
›
Ignition Switch Connector C2
Ignition Switch Connector C2

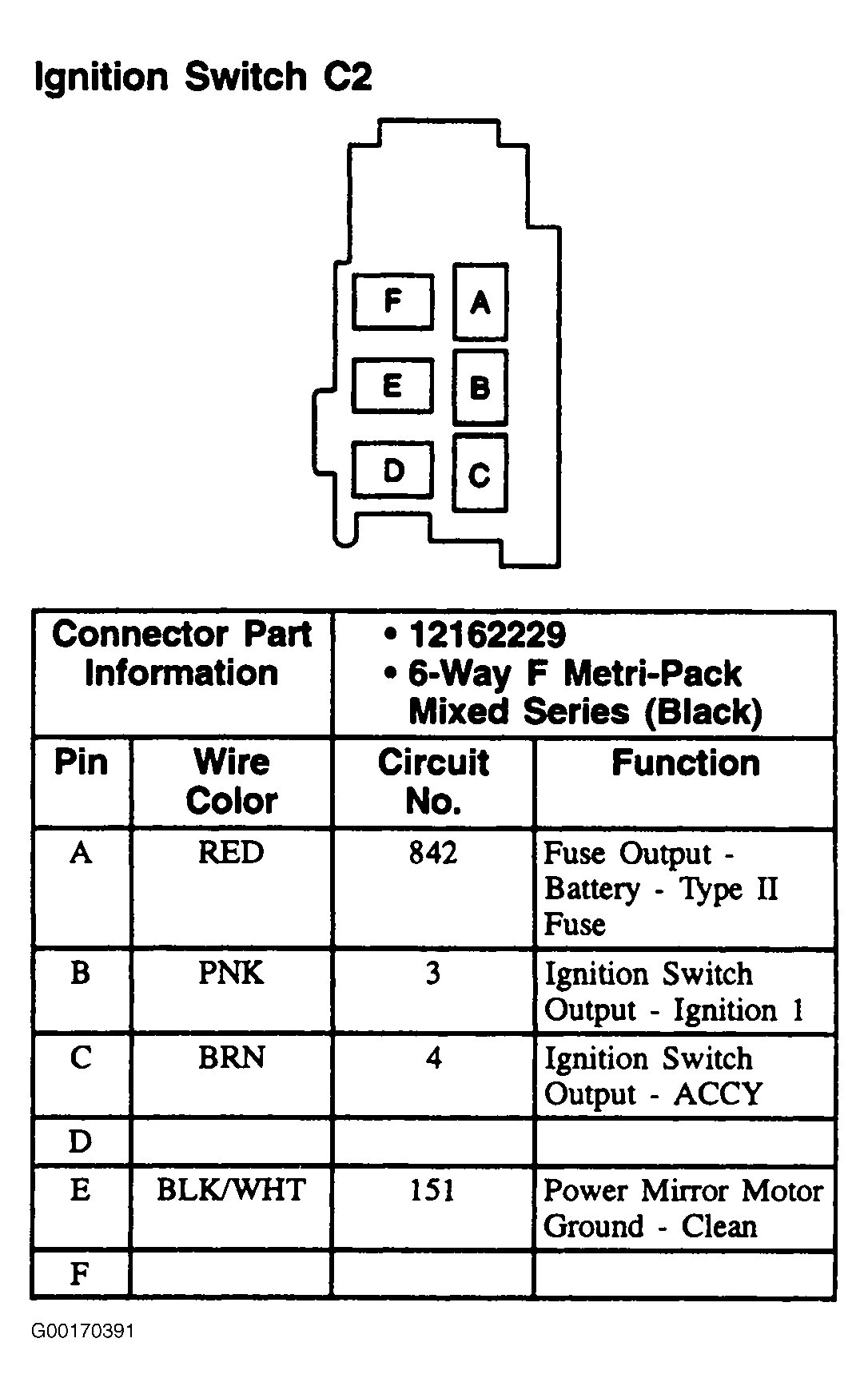

Fig 1: Ignition Switch Connector C2 (Cutlass & Malibu) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
