Connector Terminal Identification
›
Instrument Cluster
›
Cutlass & MALIBU
Cutlass & MALIBU

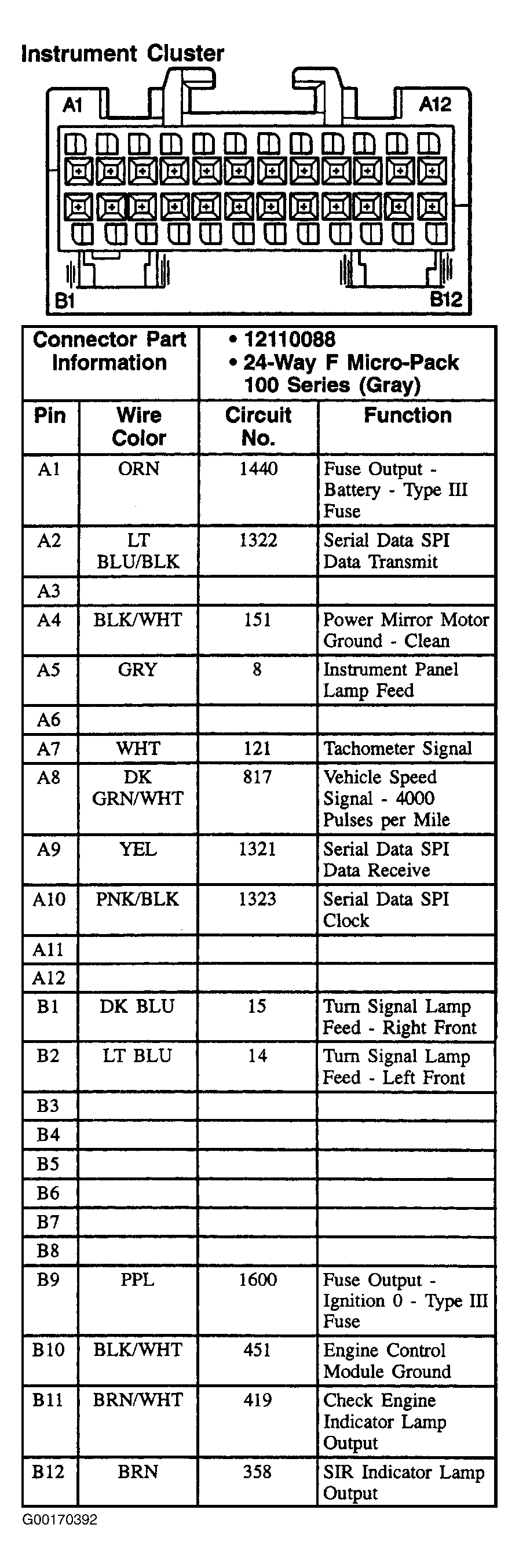

Fig 1: Instrument Cluster (Cutlass & Malibu) - 24-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
