Connector Terminal Identification
›
Panel Dimmer Switch
›
Cutlass & MALIBU
Cutlass & MALIBU

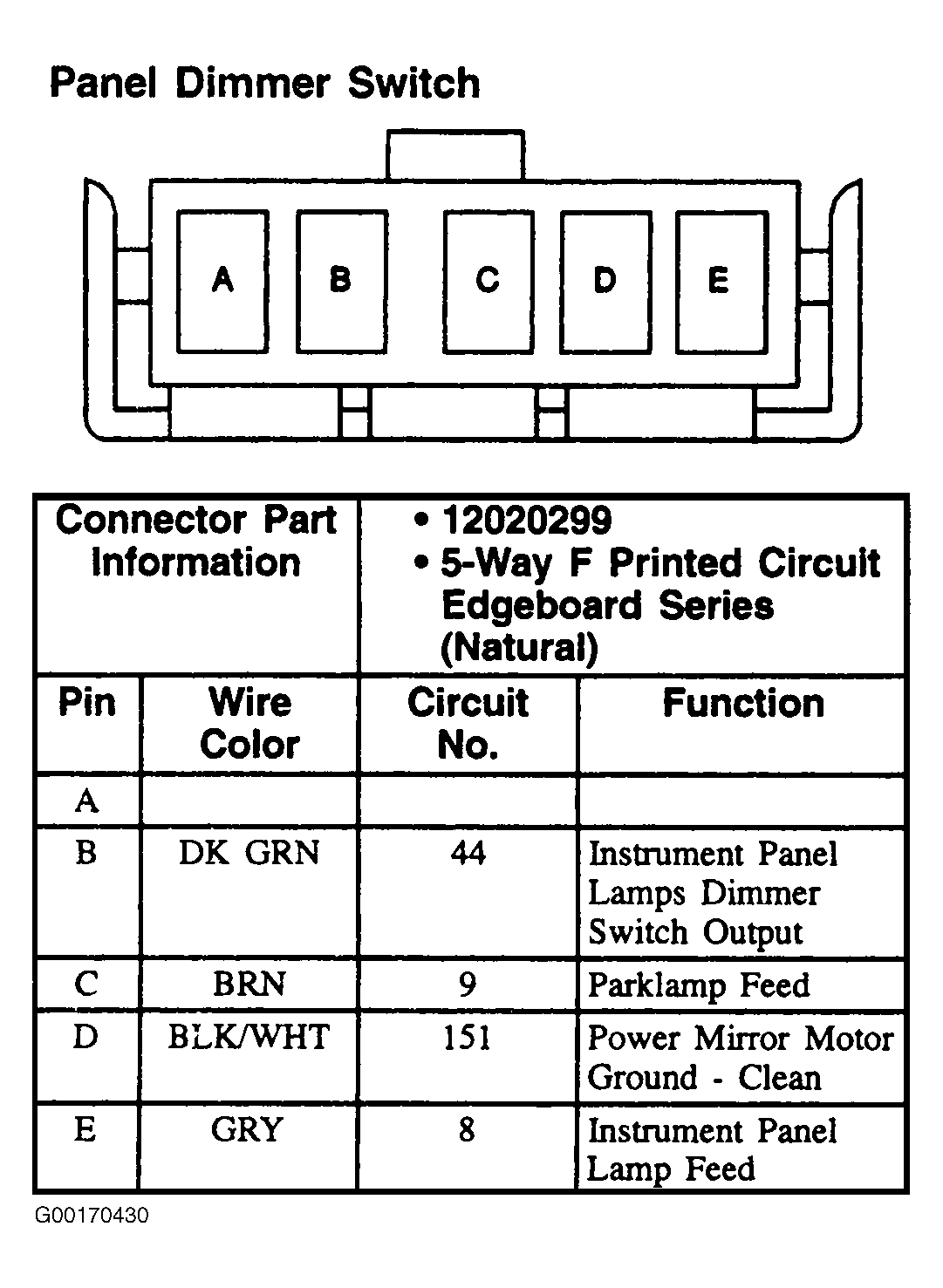

Fig 1: Panel Dimmer Switch (Cutlass & Malibu) - 5-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
