Cutlass & MALIBU

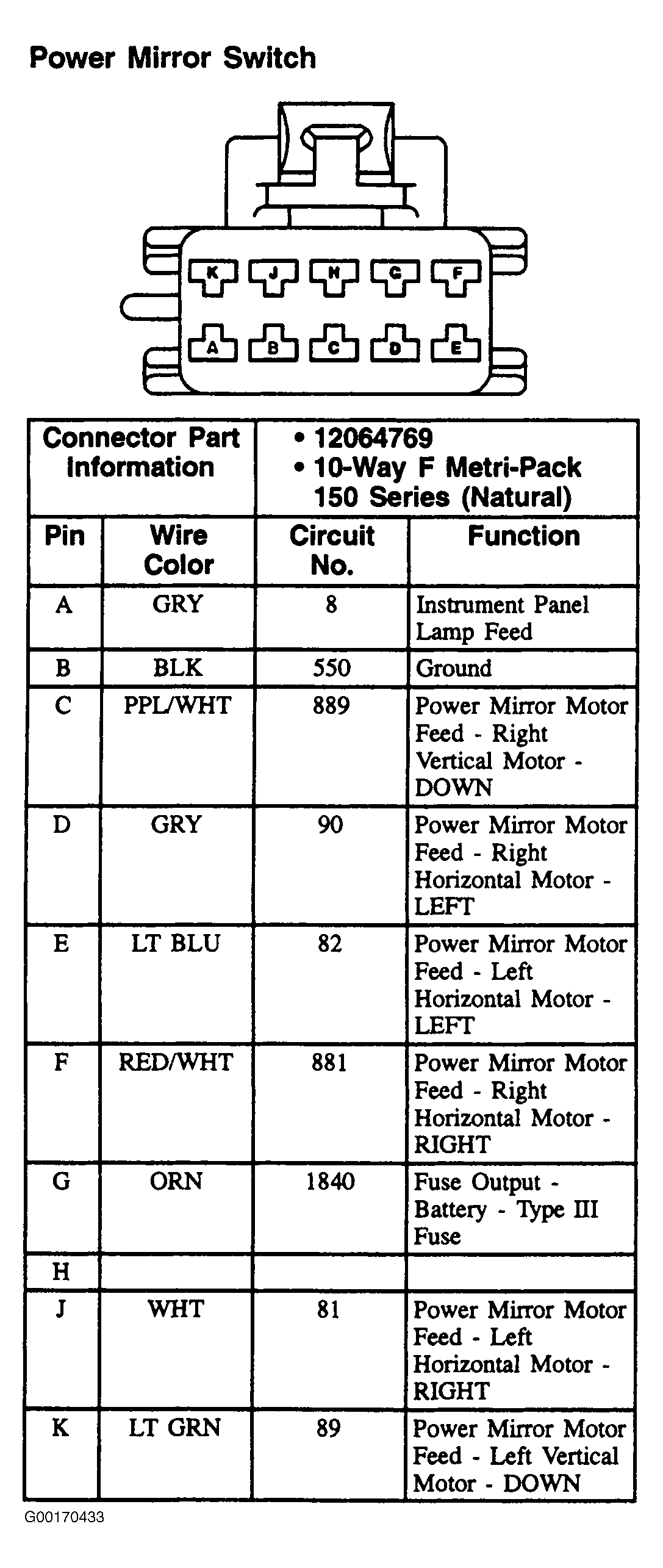

Fig 1: Power Mirror Switch (Cutlass & Malibu) - 10-Pin Connector (Natural)
G00170433Courtesy of GENERAL MOTORS CORP.
