Connector Terminal Identification
›
Pre Converter Oxygen Sensor (O2S 1) 2.4L
›
Cutlass & MALIBU
Cutlass & MALIBU

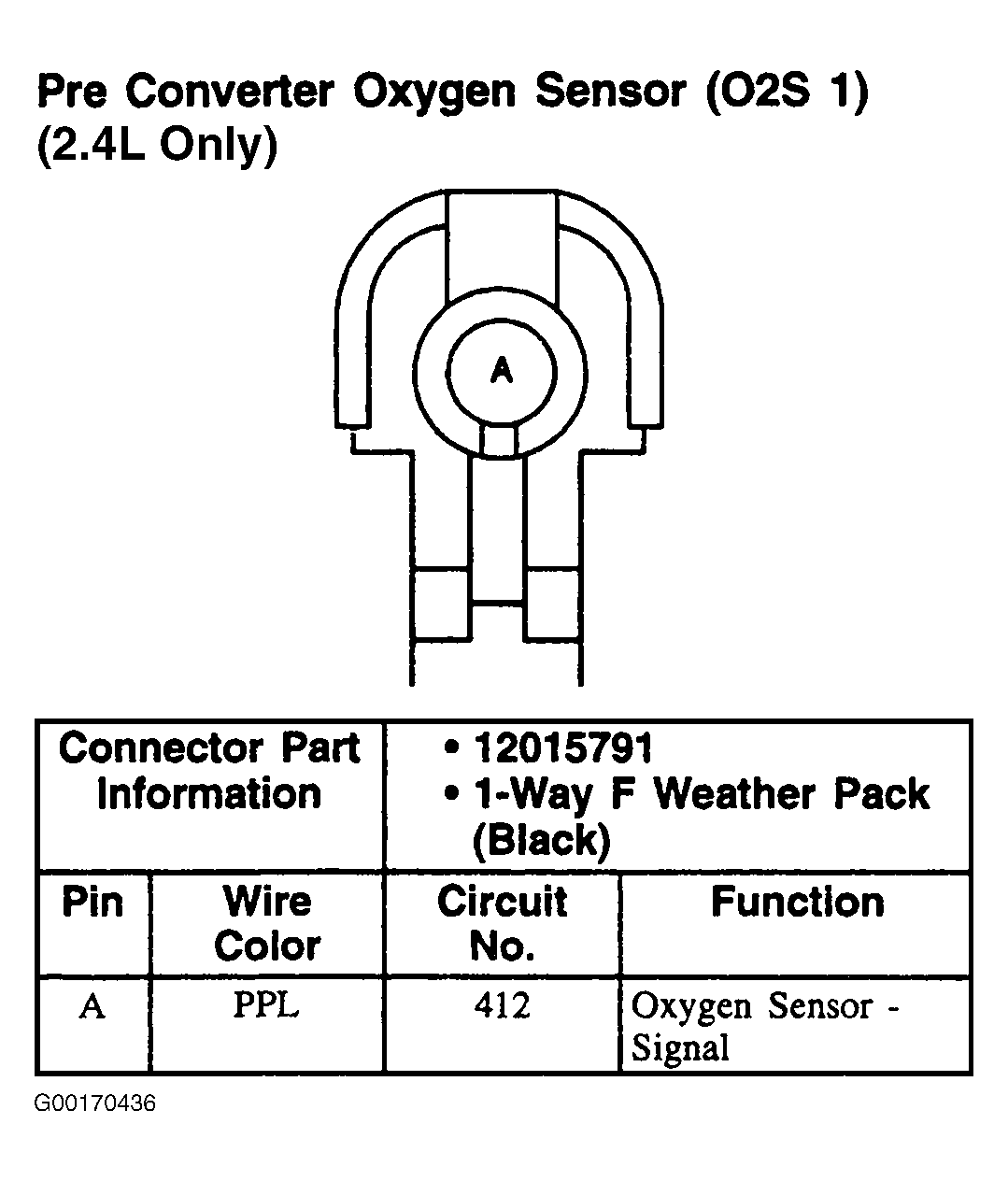

Fig 1: Pre Converter Oxygen Sensor (O2S 1) 2.4L (Cutlass & Malibu) - 1-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
