Connector Terminal Identification
›
Remote Control Door Lock Receiver
›
Cutlass & MALIBU
Cutlass & MALIBU

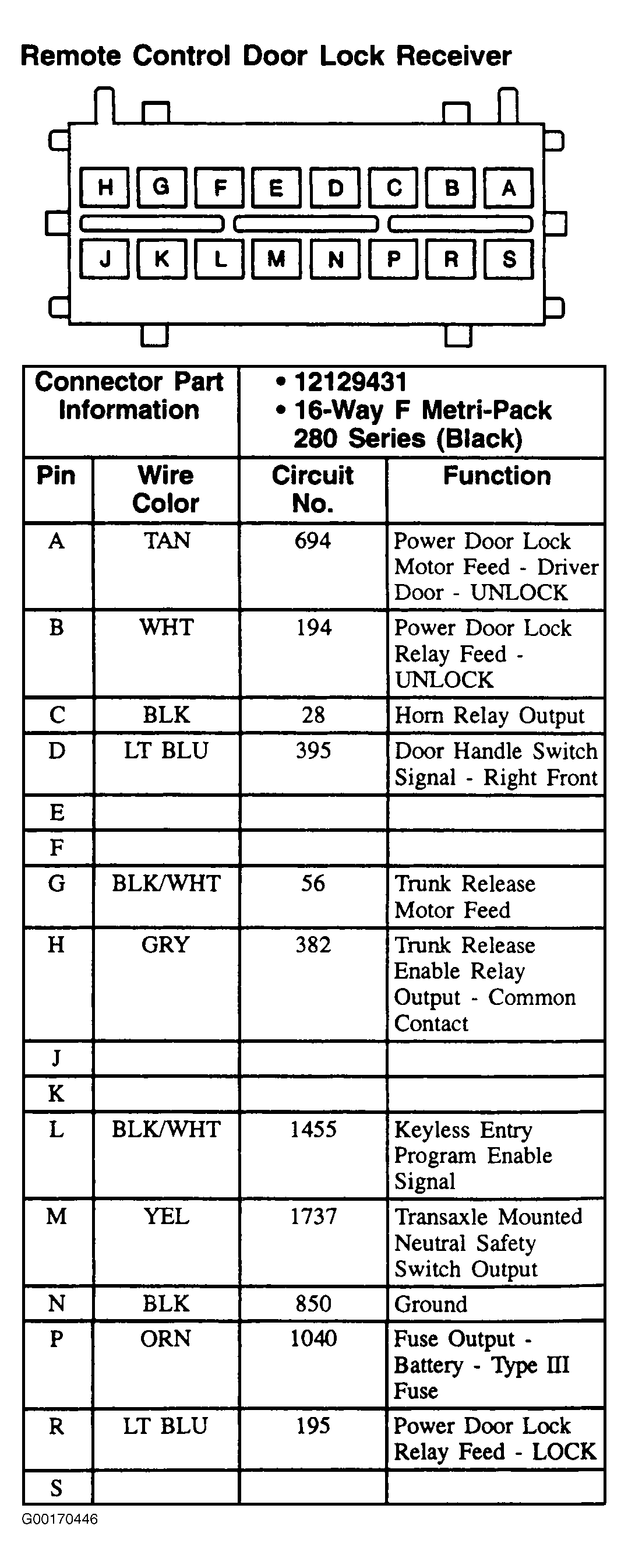

Fig 1: Remote Control Door Lock Receiver (Cutlass & Malibu) - 16-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
