Connector Terminal Identification
›
Seat Belt Switch
›
Cutlass & MALIBU
Cutlass & MALIBU

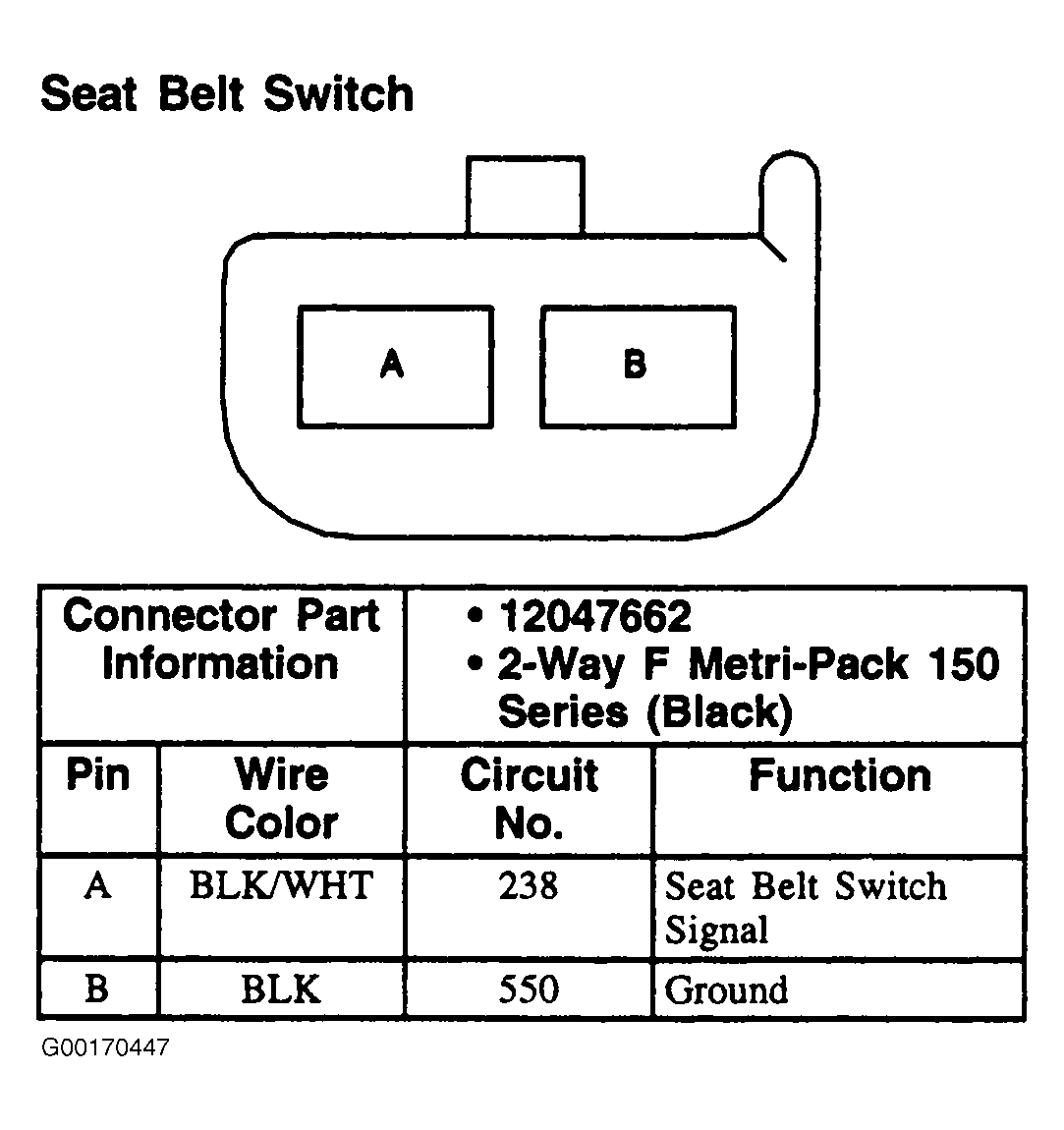

Fig 1: Seat Belt Switch (Cutlass & Malibu) - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
