Connector Terminal Identification
›
Sensing Diagnostic Module (SDM)
›
Cutlass & MALIBU
Cutlass & MALIBU

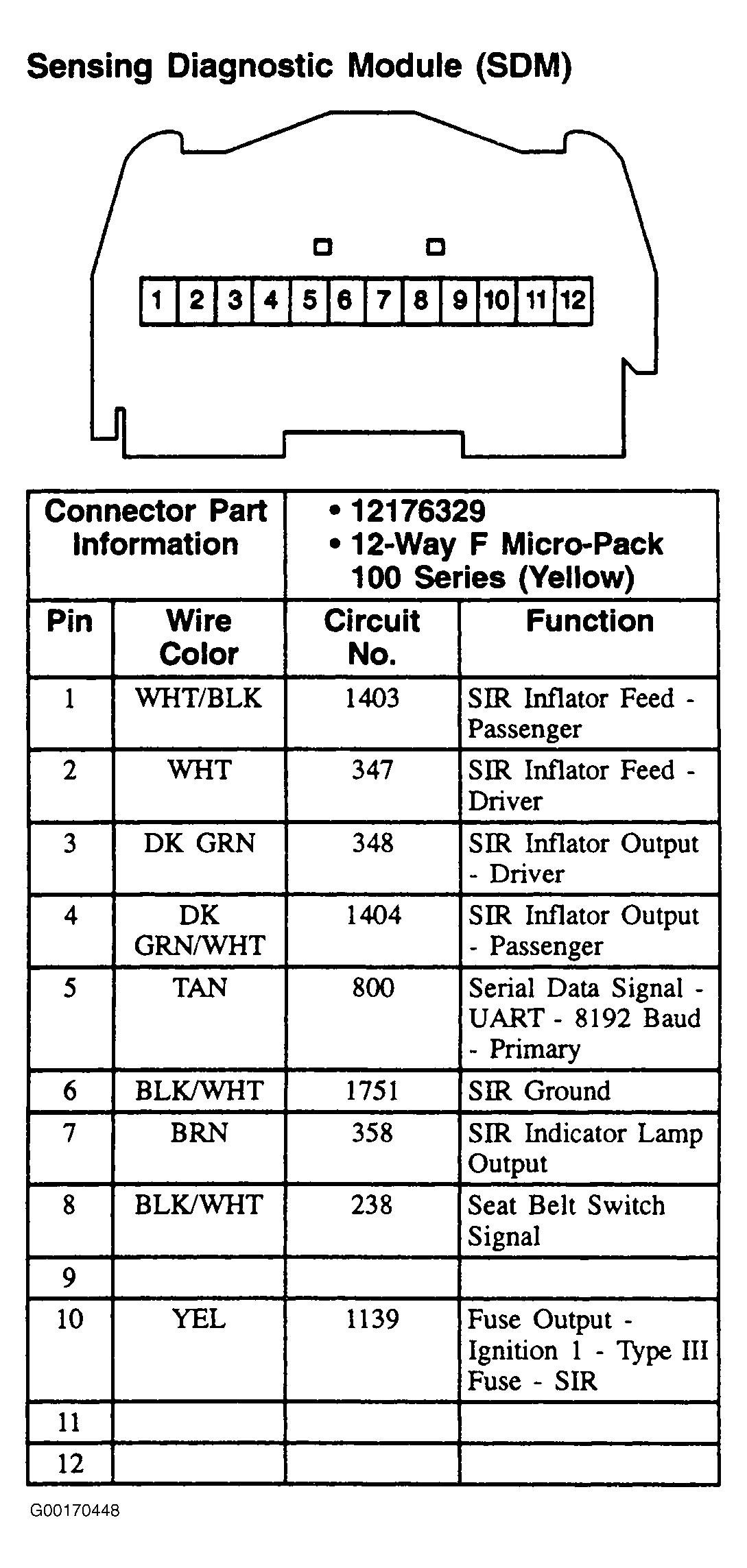

Fig 1: Sensing Diagnostic Module (SDM) Cutlass & Malibu - 12-Pin Connector (Yellow)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
