Connector Terminal Identification
›
Throttle Position (TP) Sensor
›
Cutlass & MALIBU
Cutlass & MALIBU

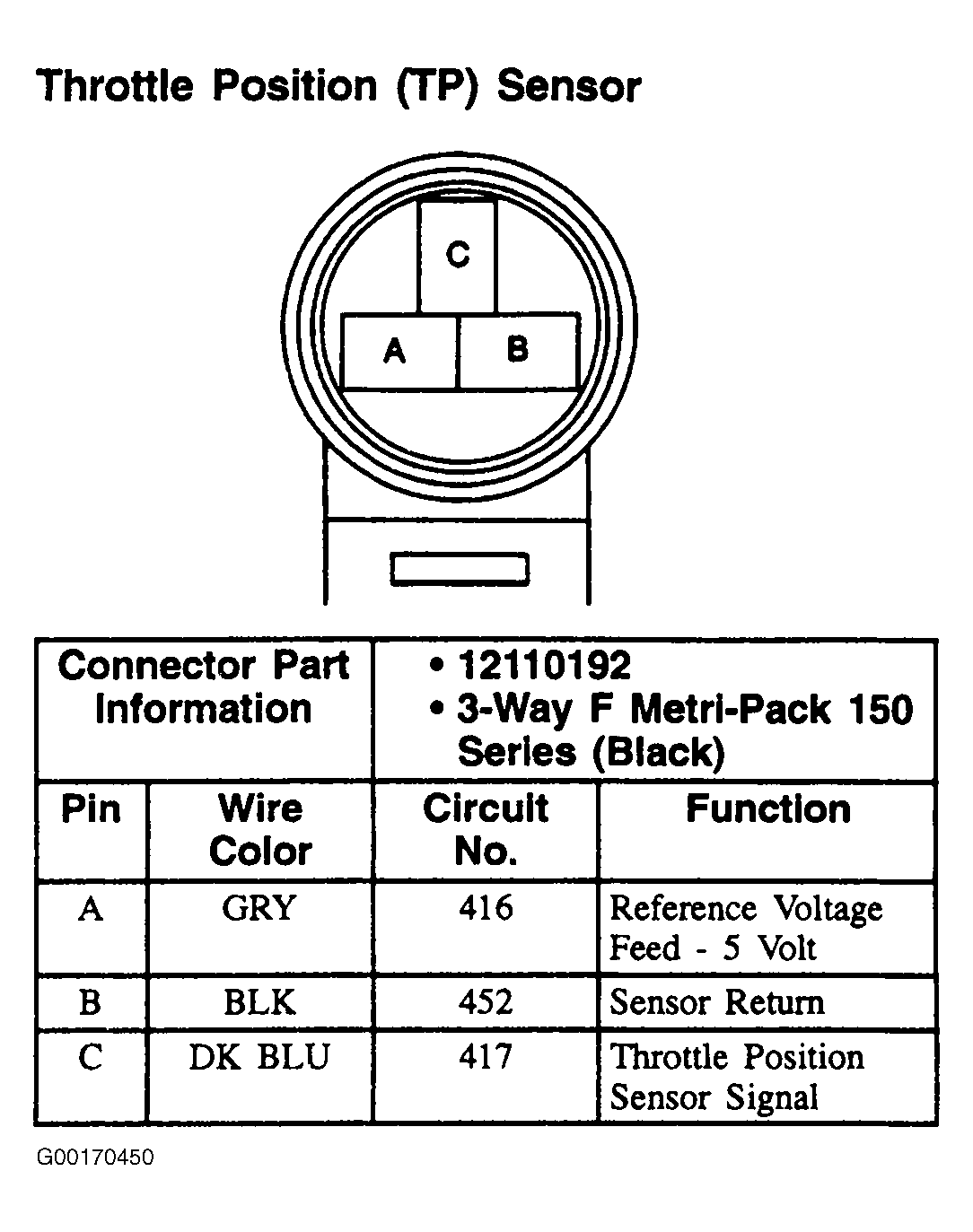

Fig 1: Throttle Position (TP) Sensor (Cutlass & Malibu) - 3-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
