Cutlass & MALIBU

Fig 1: Turn/Headlamp Switch Assembly Connectors C1 & C2 (Cutlass & Malibu) - 6-Pin Connector (Black) & 4-Pin Connector (Black) - (1 Of 2)
G97F28220Courtesy of GENERAL MOTORS CORP.

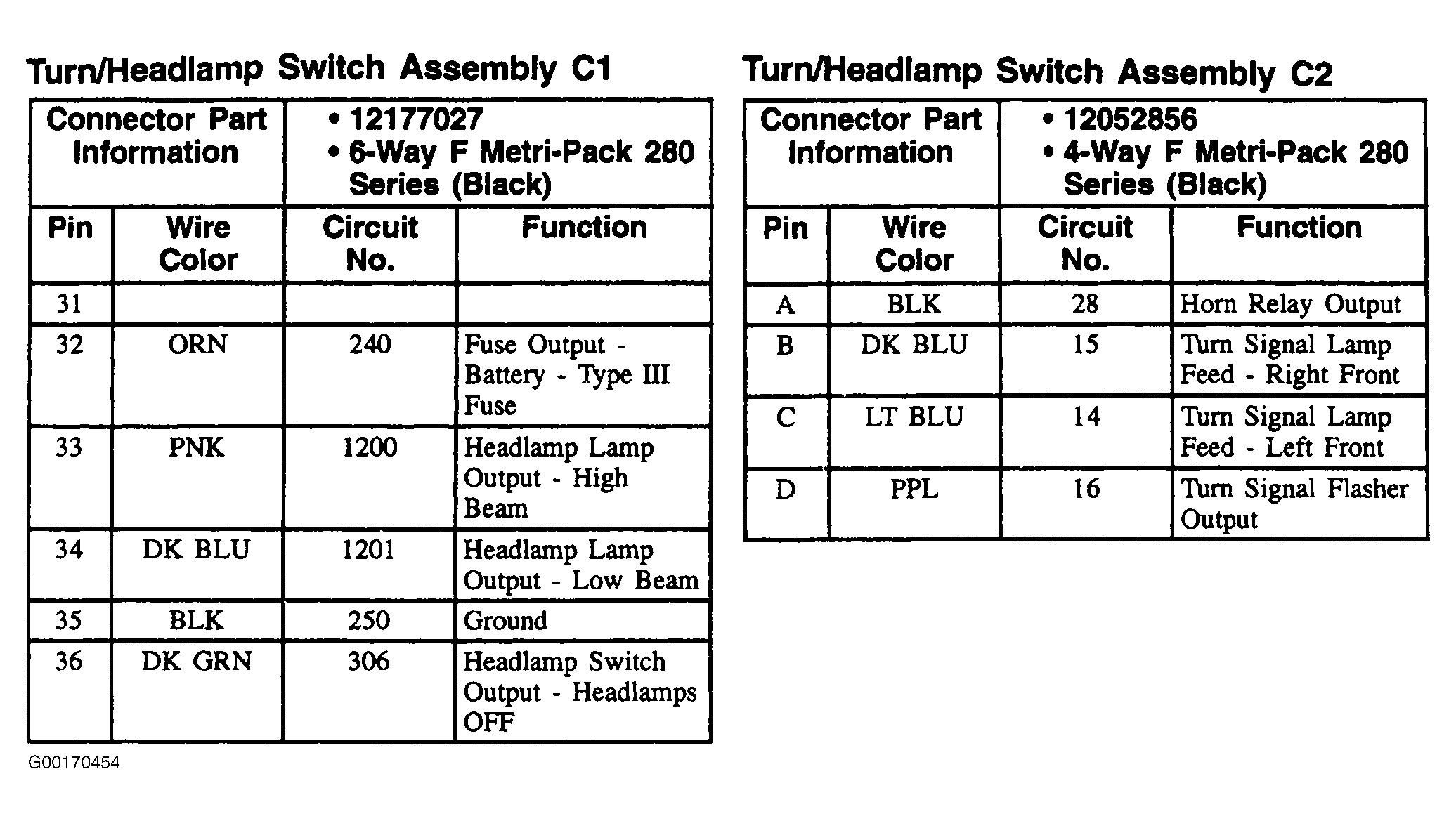

Fig 2: Turn/Headlamp Switch Assembly Connectors C1 & C2 (Cutlass & Malibu) - 6-Pin Connector (Black) & 4-Pin Connector (Black) - (2 Of 2)
G00170454Courtesy of GENERAL MOTORS CORP.
