Wheel Speed Sensor (LF & RF)

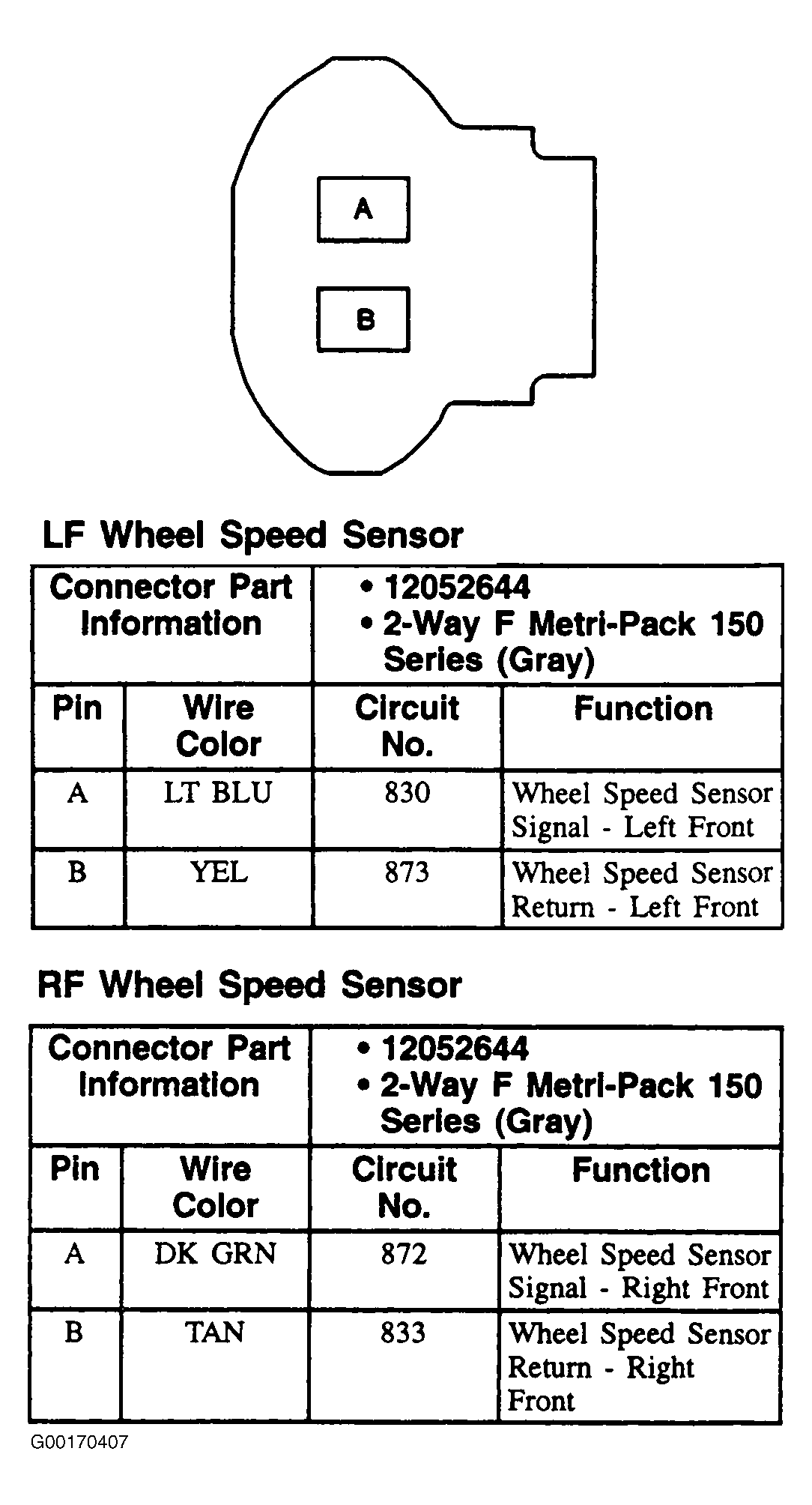

Fig 1: Wheel Speed Sensor (LF & RF - Cutlass & Malibu) - 2-Pin Connector (Gray)
G00170407Courtesy of GENERAL MOTORS CORP.
