Front End Discriminating Sensor: Removal

WARNING: This page is about a different car, the 1997 Pontiac Grand Am, 1997 Oldsmobile Achieva, and 1997 Buick Skylark. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, read air bag service precautions section. See SERVICE PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM .
Remove connector position assurance (CPA) clip and disconnect electrical connector. Remove sensor mounting fasteners. See Fig 1 . Remove sensor.

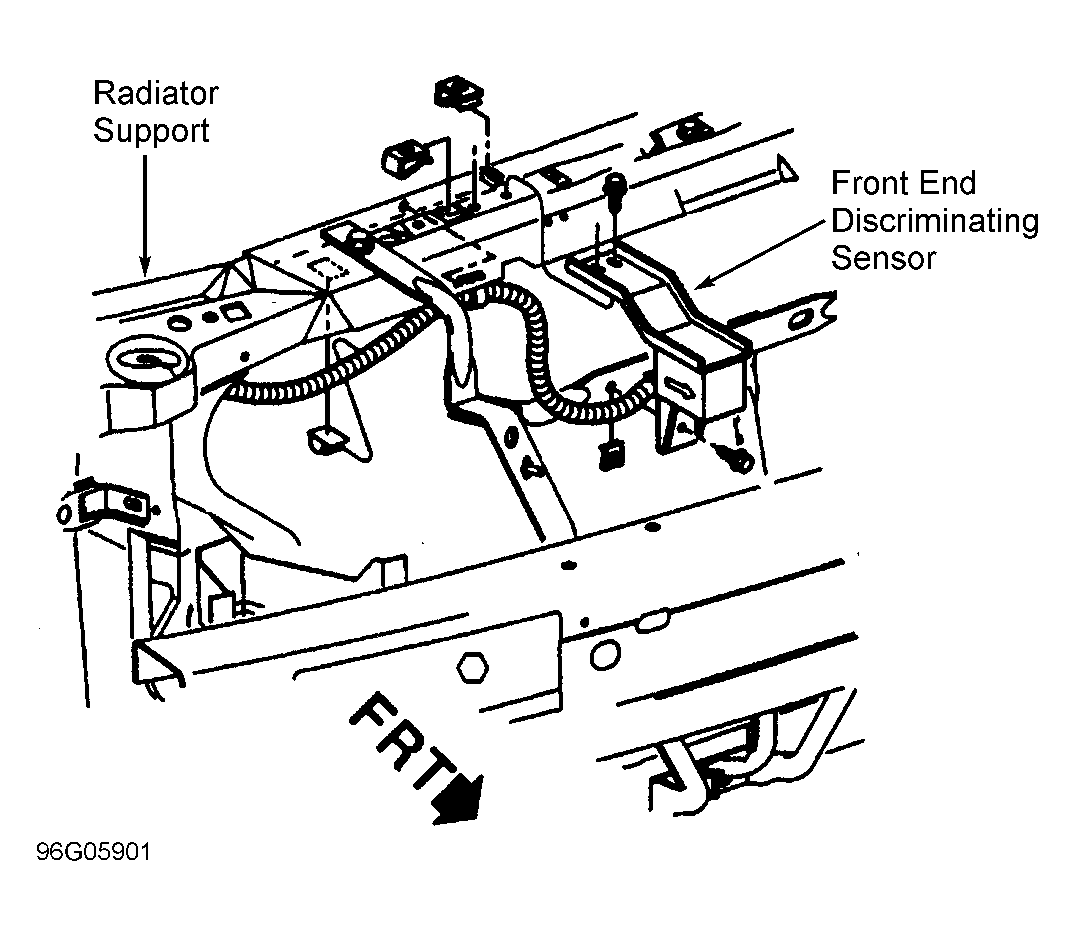

Fig 1: Removing Front End Discriminating Sensor (Typical)

Courtesy of GENERAL MOTORS CORP.
