Service Point Locations

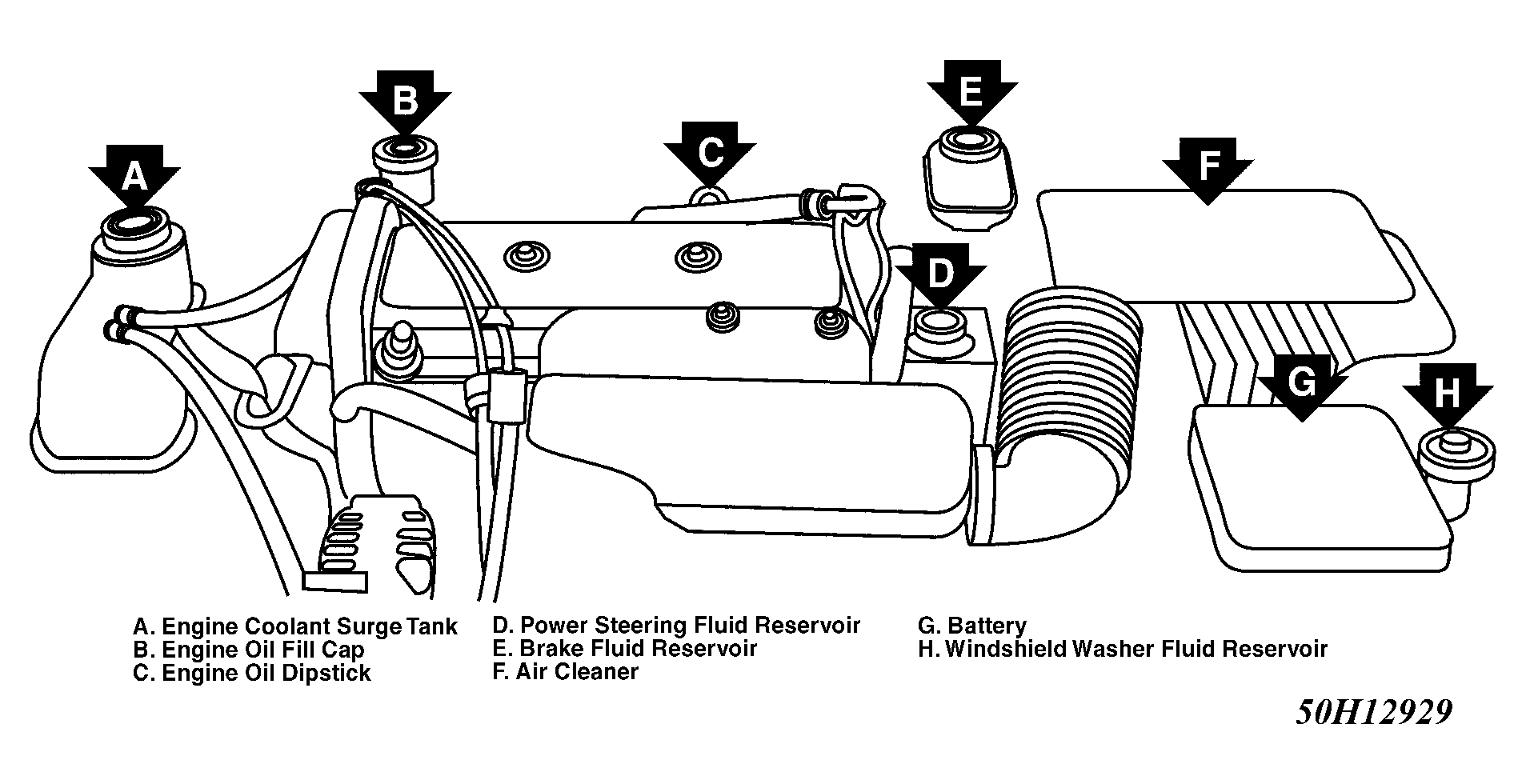

Fig 1: Service Point Locations - 2.4L (Code T)
G50H12929Courtesy of GENERAL MOTORS CORP.

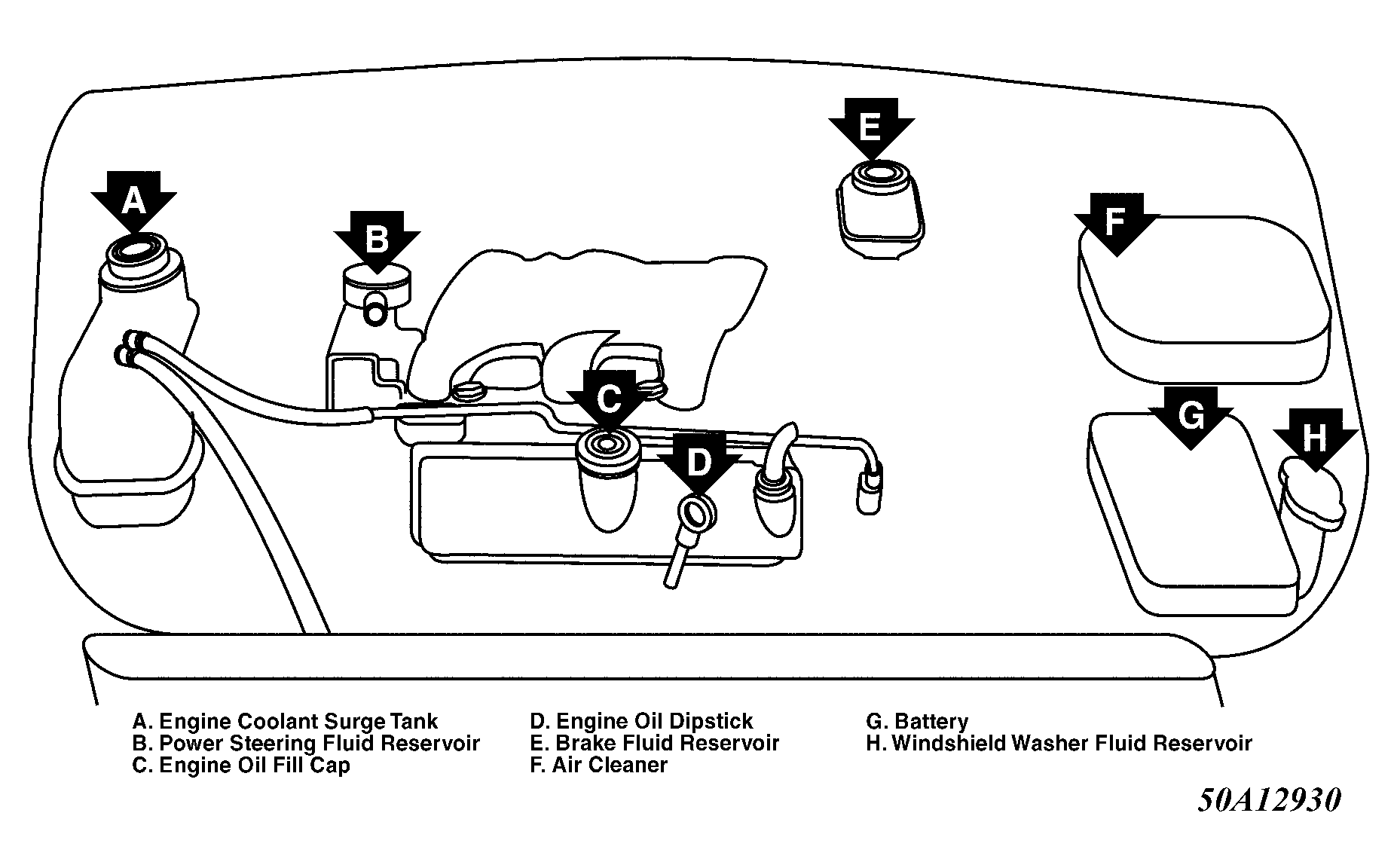

Fig 2: Service Point Locations - 3100 (Code M)
G50A12930Courtesy of GENERAL MOTORS CORP.
