Connector Terminal Identification
›
Abs Actuator Motor Assembly
›
Cutlass & MALIBU
Cutlass & MALIBU

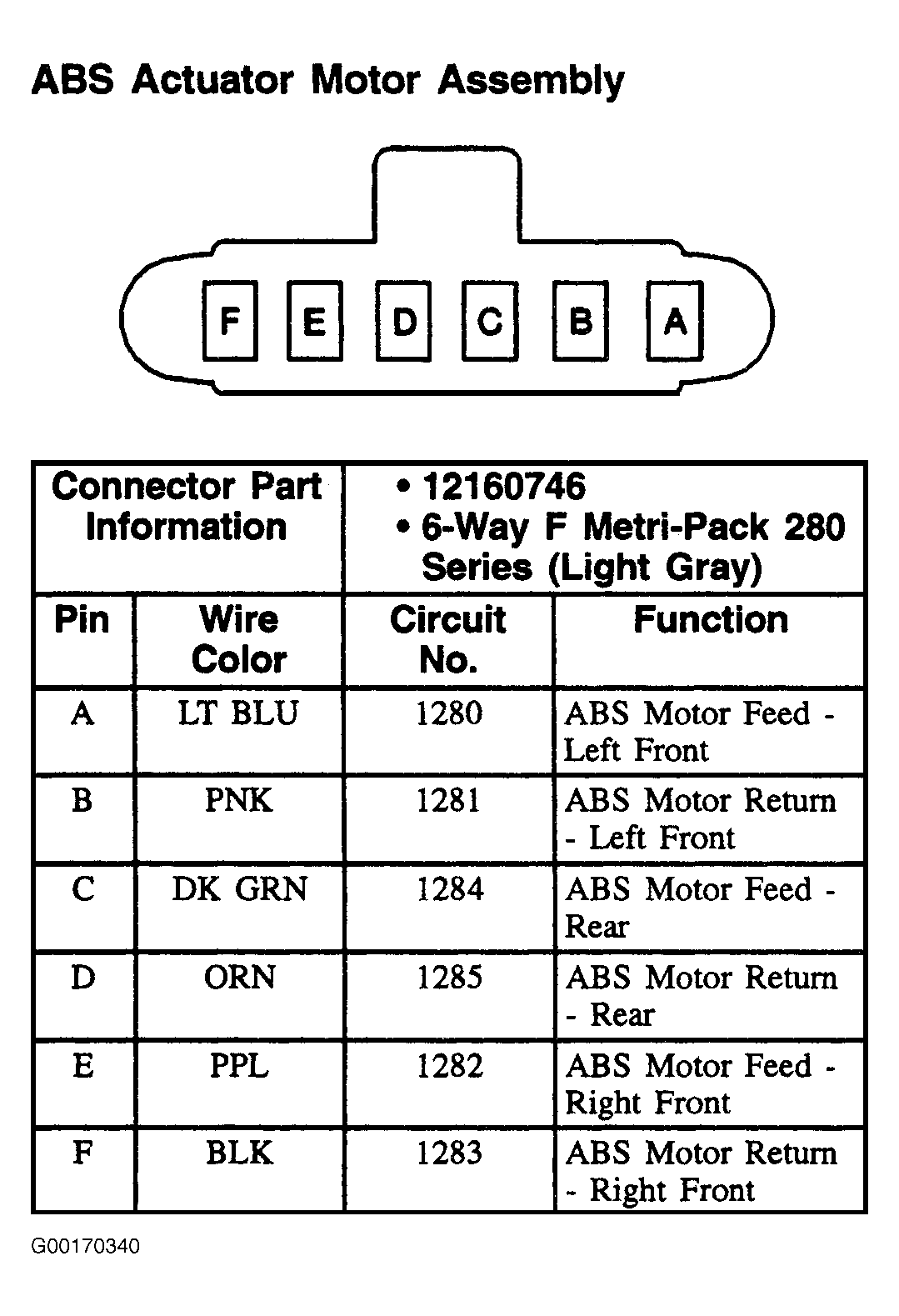

Fig 1: ABS Actuator Motor Assembly (Cutlass & Malibu) - 6-Pin Connector (Light Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
